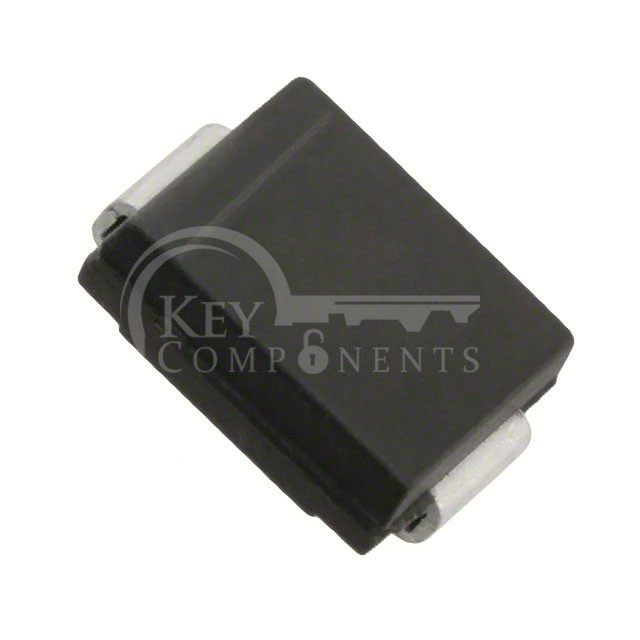

SMCJ15CA-13-F
| Manufacturer Part | SMCJ15CA-13-F |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | TVS DIODE 15VWM 24.4VC SMC |
| Category | Circuit Protection |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Zener |
| Unidirectional Channels: | - |
| Bidirectional Channels: | 1 |
| Voltage - Reverse Standoff (Typ): | 15V |
| Voltage - Breakdown (Min): | 16.7V |
| Voltage - Clamping (Max) @ Ipp: | 24.4V |
| Current - Peak Pulse (10/1000µs): | 61.5A |
| Power - Peak Pulse: | 1500W (1.5kW) |
| Power Line Protection: | No |
| Applications: | General Purpose |
| Capacitance @ Frequency: | - |
| Operating Temperature: | -55°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | DO-214AB, SMC |
| Supplier Device Package: | SMC |
