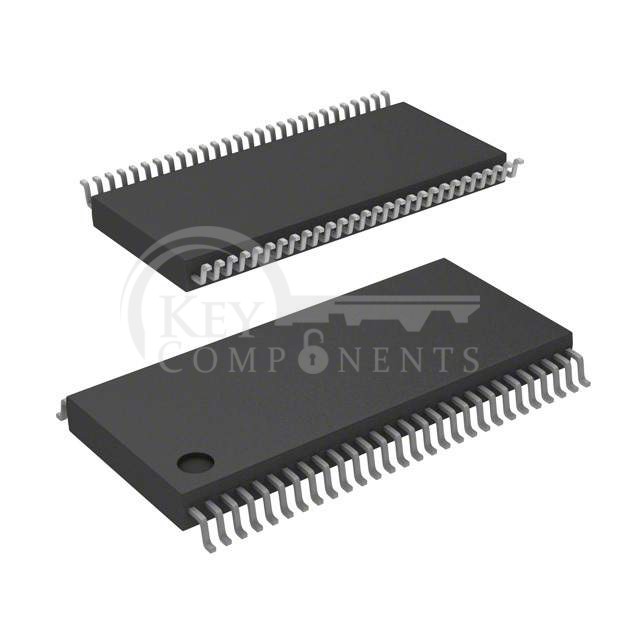

PI3B16233AE
| Manufacturer Part | PI3B16233AE |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | IC MUX/DEMUX 8 X 1:2 56TSSOP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Type: | Multiplexer/Demultiplexer |
| Circuit: | 8 x 1:2 |
| Independent Circuits: | 2 |
| Current - Output High, Low: | - |
| Voltage Supply Source: | Single Supply |
| Voltage - Supply: | 3V ~ 3.6V |
| Operating Temperature: | -40°C ~ 85°C |
| Mounting Type: | Surface Mount |
| Package / Case: | 56-TFSOP (0.240", 6.10mm Width) |
| Supplier Device Package: | 56-TSSOP |
