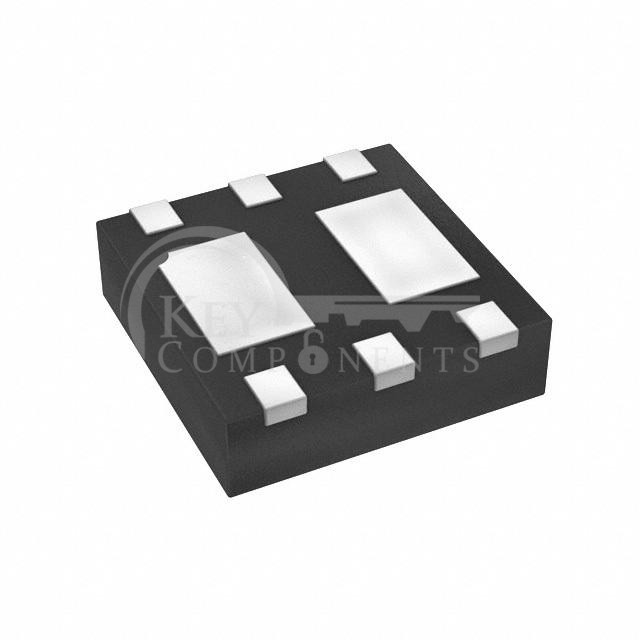

DMP2065UFDB-7

Manufacturer Part	DMP2065UFDB-7
Manufacturer	Diodes Incorporated
Description	MOSFET 2 P-CH 20V 4.5A DFN2020-6
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
FET Type:	2 P-Channel (Dual)
FET Feature:	Standard
Drain to Source Voltage (Vdss):	20V
Current - Continuous Drain (Id) @ 25°C:	4.5A (Ta)
Rds On (Max) @ Id, Vgs:	50mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id:	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	9.1nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:	752pF @ 15V
Power - Max:	1.54W
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	6-UDFN Exposed Pad
Supplier Device Package:	U-DFN2020-6 (Type B)
