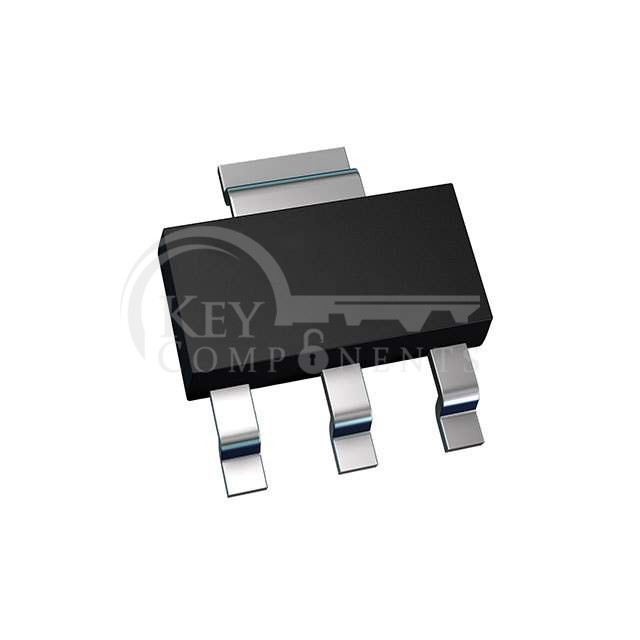

DMP10H400SEQ-13

Manufacturer Part	DMP10H400SEQ-13
Manufacturer	Diodes Incorporated
Description	MOSFET P-CH 100V 2.3A/6A SOT223
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	100 V
Current - Continuous Drain (Id) @ 25°C:	2.3A (Ta), 6A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	250mOhm @ 5A, 10V
Vgs(th) (Max) @ Id:	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	17.5 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	1239 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	2W (Ta), 13.7W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	SOT-223-3
Package / Case:	TO-261-4, TO-261AA
