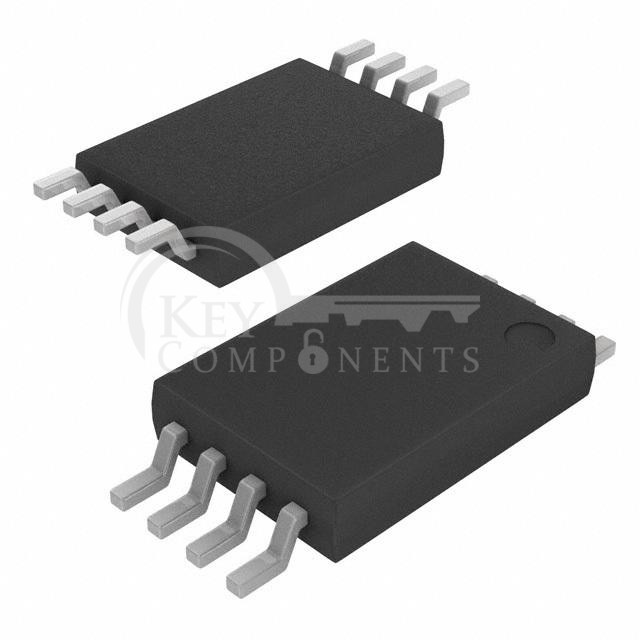

DMG8822UTS-13

Manufacturer Part	DMG8822UTS-13
Manufacturer	Diodes Incorporated
Description	MOSFET 2N-CH 20V 4.9A 8TSSOP
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
FET Type:	2 N-Channel (Dual) Common Drain
FET Feature:	Standard
Drain to Source Voltage (Vdss):	20V
Current - Continuous Drain (Id) @ 25°C:	4.9A (Ta)
Rds On (Max) @ Id, Vgs:	25mOhm @ 8.2A, 4.5V
Vgs(th) (Max) @ Id:	900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	9.6nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:	841pF @ 10V
Power - Max:	870mW
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	8-TSSOP (0.173", 4.40mm Width)
Supplier Device Package:	8-TSSOP
