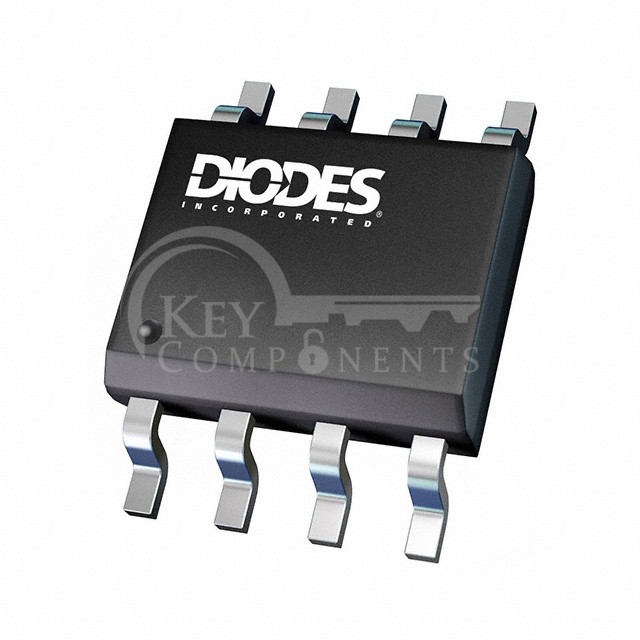

AL1673-20CSP-13
| Manufacturer Part | AL1673-20CSP-13 |
|---|---|
| Manufacturer | Diodes Incorporated |
| Description | IC LED DRIVER OFFL PWM 2A 8SO 4K |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Type: | AC DC Offline Switcher |
| Topology: | Flyback, Step-Down (Buck), Step-Up (Boost) |
| Internal Switch(s): | No |
| Number of Outputs: | 1 |
| Voltage - Supply (Min): | 7V |
| Voltage - Supply (Max): | 30V |
| Voltage - Output: | 600V |
| Current - Output / Channel: | 2A |
| Frequency: | 120kHz ~ 230kHz |
| Dimming: | Analog, PWM |
| Applications: | General Purpose |
| Operating Temperature: | -40°C ~ 105°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package: | 8-SO-EP |
