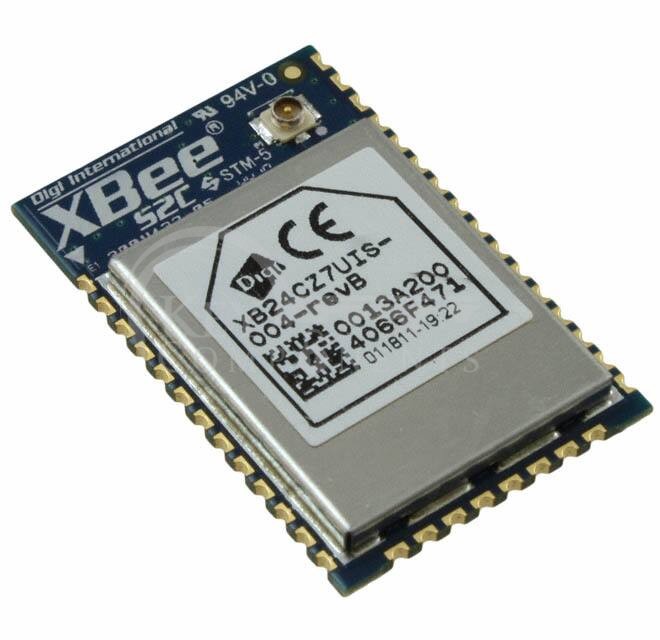

XB24CZ7UIS-004
| Manufacturer Part | XB24CZ7UIS-004 |
|---|---|
| Manufacturer | Digi |
| Description | RX TXRX MODULE 802.15.4 U.FL SMD |
| Category | RF/IF and RFID |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Not For New Designs |
| RF Family/Standard: | 802.15.4 |
| Protocol: | Zigbee® |
| Modulation: | DSSS |
| Frequency: | 2.4GHz |
| Data Rate: | 1Mbps |
| Power - Output: | 8dBm |
| Sensitivity: | -100dBm |
| Serial Interfaces: | SPI, UART |
| Antenna Type: | Antenna Not Included, U.FL |
| Utilized IC / Part: | EM357 |
| Memory Size: | - |
| Voltage - Supply: | 2.1V ~ 3.6V |
| Current - Receiving: | 28mA ~ 45mA |
| Current - Transmitting: | 33mA ~ 59mA |
| Mounting Type: | Surface Mount |
| Operating Temperature: | -40°C ~ 85°C |
| Package / Case: | Module |
