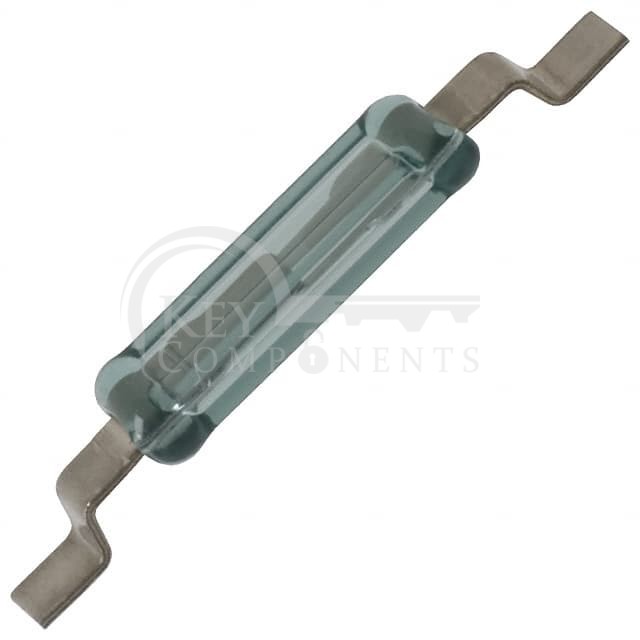

UM2315
| Manufacturer Part | UM2315 |
|---|---|
| Manufacturer | Coto Technology |
| Description | SWITCH REED SPST-NO 250MA 175V |
| Category | Switches |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Type: | Glass Body Reed |
| Circuit: | SPST-NO |
| Operate Range: | 10 ~ 20AT |
| Release Range: | - |
| Current - Switching: | 250mA (AC/DC) |
| Voltage - Switching AC: | 175 V |
| Voltage - Switching DC: | 175 V |
| Power - Rated: | 5VA |
| Operate Time: | 0.4 ms |
| Release Time: | 0.1 ms |
| Mounting Type: | Surface Mount |
| Termination Style: | Gull Wing |
| Length - Overall: | 0.400" (10.16mm) |
| Size - Body: | 0.232" L x 0.076" W x 0.060" H (5.89mm x 1.93mm x 1.53mm) |
| Height Above Board: | 0.064" (1.64mm) |
| Operating Temperature: | -40°C ~ 125°C |
| Capacitance: | 0.3 pF |
| Current - Carry: | 500mA (AC/DC) |
