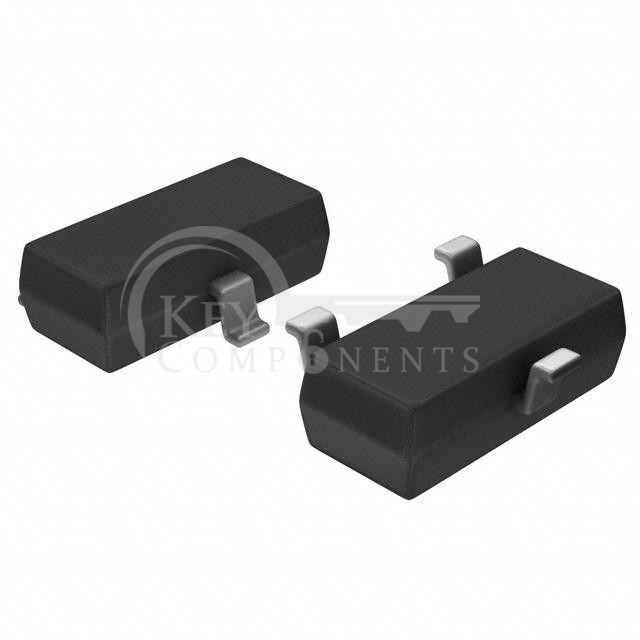

CPDT-5V0-HF
| Manufacturer Part | CPDT-5V0-HF |
|---|---|
| Manufacturer | Comchip Technology |
| Description | TVS DIODE 5VWM 15VC SOT23-3 |
| Category | Circuit Protection |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Zener |
| Unidirectional Channels: | - |
| Bidirectional Channels: | 2 |
| Voltage - Reverse Standoff (Typ): | 5V |
| Voltage - Breakdown (Min): | 5.1V |
| Voltage - Clamping (Max) @ Ipp: | 15V |
| Current - Peak Pulse (10/1000µs): | 5A (8/20µs) |
| Power - Peak Pulse: | 75W |
| Power Line Protection: | No |
| Applications: | General Purpose |
| Capacitance @ Frequency: | - |
| Operating Temperature: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package: | SOT-23-3 |
