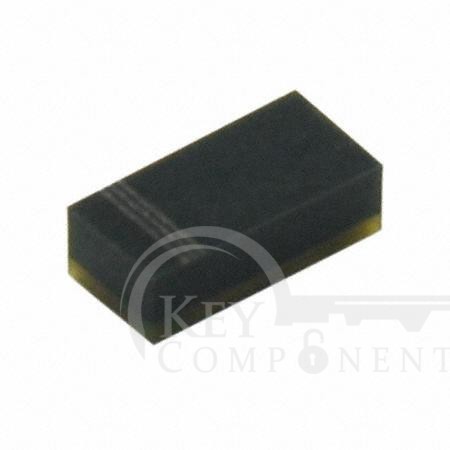

CPDF12V0U-HF
| Manufacturer Part | CPDF12V0U-HF |
|---|---|
| Manufacturer | Comchip Technology |
| Description | TVS DIODE 12VWM 24V 1005/SOD323F |
| Category | Circuit Protection |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Zener |
| Unidirectional Channels: | 1 |
| Bidirectional Channels: | - |
| Voltage - Reverse Standoff (Typ): | 12V |
| Voltage - Breakdown (Min): | 13.3V |
| Voltage - Clamping (Max) @ Ipp: | 24V |
| Current - Peak Pulse (10/1000µs): | 5A (8/20µs) |
| Power - Peak Pulse: | 120W |
| Power Line Protection: | No |
| Applications: | General Purpose |
| Capacitance @ Frequency: | 60pF @ 1MHz |
| Operating Temperature: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | 1005 (2512 Metric) |
| Supplier Device Package: | 1005/SOD-323F |
