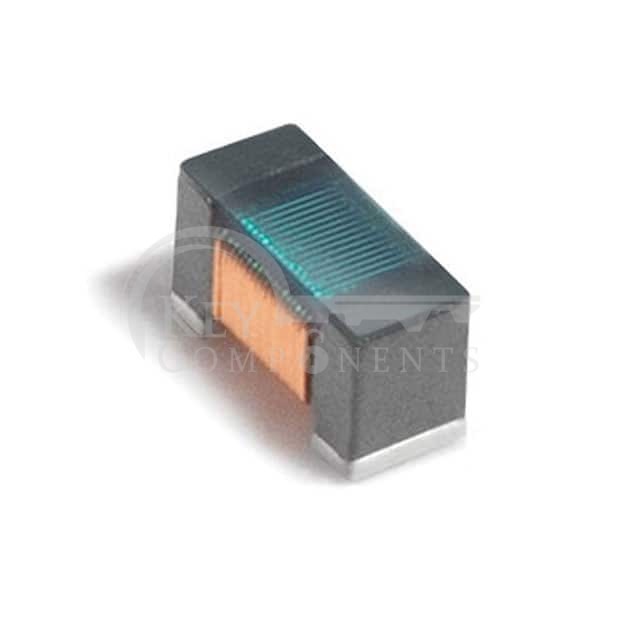

0402DF-102XJRW
| Manufacturer Part | 0402DF-102XJRW |
|---|---|
| Manufacturer | COILCRAFT |
| Description | FIXED IND 1UH 190MA 1.05 OHM SMD |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | - |
| Material - Core: | Ferrite |
| Inductance: | 1 µH |
| Tolerance: | ±5% |
| Current Rating (Amps): | 190 mA |
| Current - Saturation (Isat): | - |
| Shielding: | Unshielded |
| DC Resistance (DCR): | 1.05Ohm Max |
| Q @ Freq: | - |
| Frequency - Self Resonant: | 235MHz |
| Ratings: | AEC-Q200 |
| Operating Temperature: | -40°C ~ 125°C |
| Inductance Frequency - Test: | 7.9 MHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | 0402 (1005 Metric) |
| Supplier Device Package: | 0402 |
| Size / Dimension: | 0.044" L x 0.026" W (1.11mm x 0.66mm) |
| Height - Seated (Max): | 0.026" (0.66mm) |
