Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Number of Channels: | 4 |
| Voltage - Isolation: | 5000Vrms |
| Current Transfer Ratio (Min): | 1500% @ 1mA |
| Current Transfer Ratio (Max): | 6500% @ 1mA |
| Turn On / Turn Off Time (Typ): | - |
| Rise / Fall Time (Typ): | 100µs, 100µs |
| Input Type: | DC |
| Output Type: | Darlington |
| Voltage - Output (Max): | 300V |
| Current - Output / Channel: | 150mA |
| Voltage - Forward (Vf) (Typ): | 1.15V |
| Current - DC Forward (If) (Max): | 80 mA |
| Vce Saturation (Max): | 1V |
| Operating Temperature: | -55°C ~ 100°C |
| Mounting Type: | Through Hole |

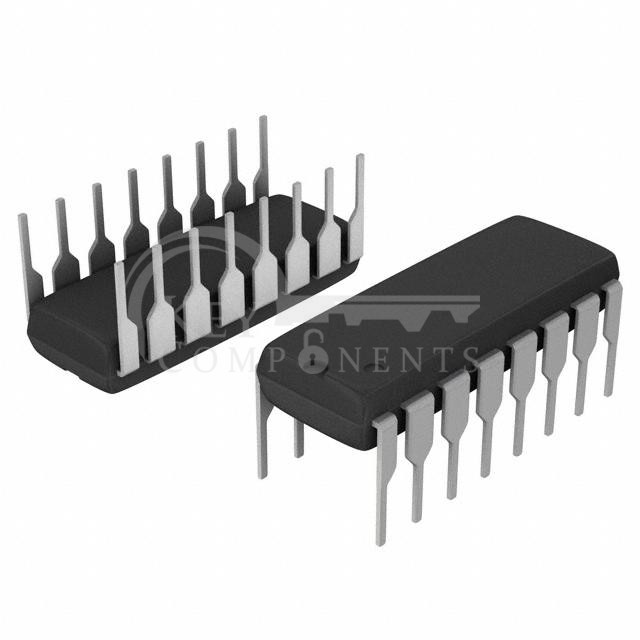

| Package / Case: | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package: | 16-DIP |
