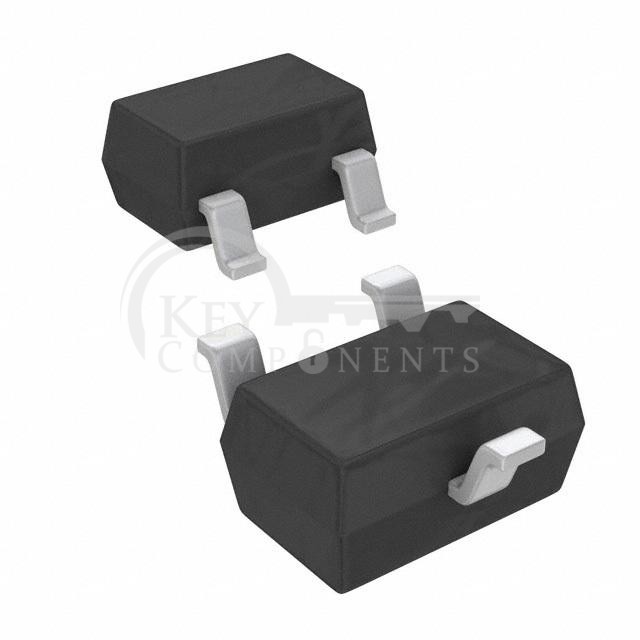

NE85630-T1-A
| Manufacturer Part | NE85630-T1-A |
|---|---|
| Manufacturer | CEL |
| Description | RF TRANS NPN 12V 4.5GHZ SOT323 |
| Category | Discrete Semiconductor Products |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Transistor Type: | NPN |
| Voltage - Collector Emitter Breakdown (Max): | 12V |
| Frequency - Transition: | 4.5GHz |
| Noise Figure (dB Typ @ f): | 1.2dB @ 1GHz |
| Gain: | 9dB |
| Power - Max: | 150mW |
| DC Current Gain (hFE) (Min) @ Ic, Vce: | 40 @ 7mA, 3V |
| Current - Collector (Ic) (Max): | 100mA |
| Operating Temperature: | 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | SC-70, SOT-323 |
| Supplier Device Package: | SOT-323 |
