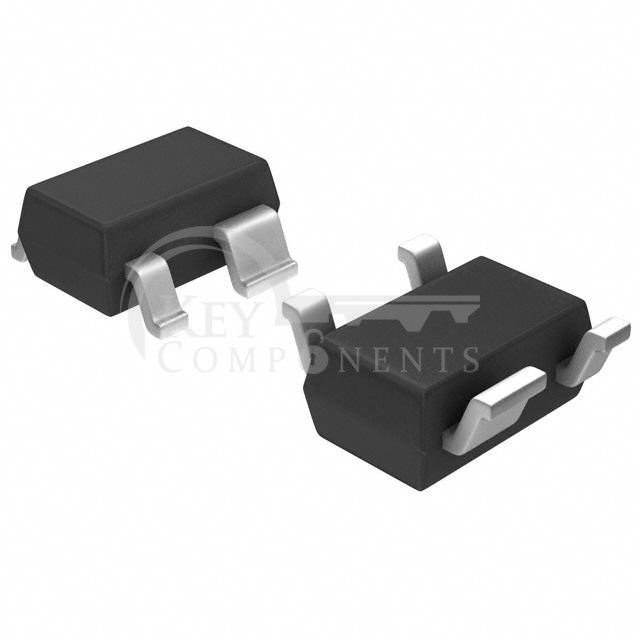

2SC5015-T1-A
| Manufacturer Part | 2SC5015-T1-A |
|---|---|
| Manufacturer | CEL |
| Description | RF TRANS NPN 6V 12GHZ SOT343 |
| Category | Discrete Semiconductor Products |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Transistor Type: | NPN |
| Voltage - Collector Emitter Breakdown (Max): | 6V |
| Frequency - Transition: | 12GHz |
| Noise Figure (dB Typ @ f): | 1.5dB @ 2GHz |
| Gain: | 11dB |
| Power - Max: | 150mW |
| DC Current Gain (hFE) (Min) @ Ic, Vce: | 75 @ 10mA, 3V |
| Current - Collector (Ic) (Max): | 30mA |
| Operating Temperature: | 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | SC-82A, SOT-343 |
| Supplier Device Package: | SOT-343 |
