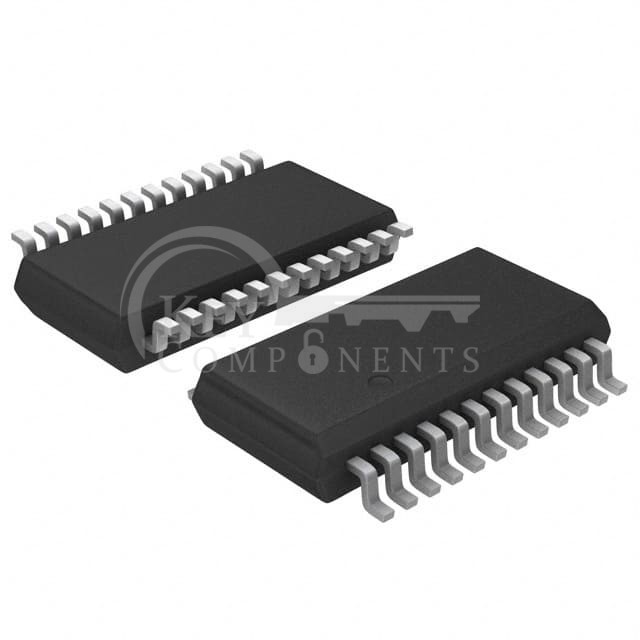

CAT4016VSR-T2
| Manufacturer Part | CAT4016VSR-T2 |
|---|---|
| Manufacturer | Catalyst Semiconductor Inc. |
| Description | IC LED DRVR LIN PWM 80MA 24TSSOP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Type: | Linear |
| Topology: | Shift Register |
| Internal Switch(s): | Yes |
| Number of Outputs: | 16 |
| Voltage - Supply (Min): | 3V |
| Voltage - Supply (Max): | 5.5V |
| Voltage - Output: | 5.5V |
| Current - Output / Channel: | 80mA |
| Frequency: | 25MHz |
| Dimming: | PWM |
| Applications: | Signage |
| Operating Temperature: | -40°C ~ 85°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | 24-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package: | 24-TSSOP |
