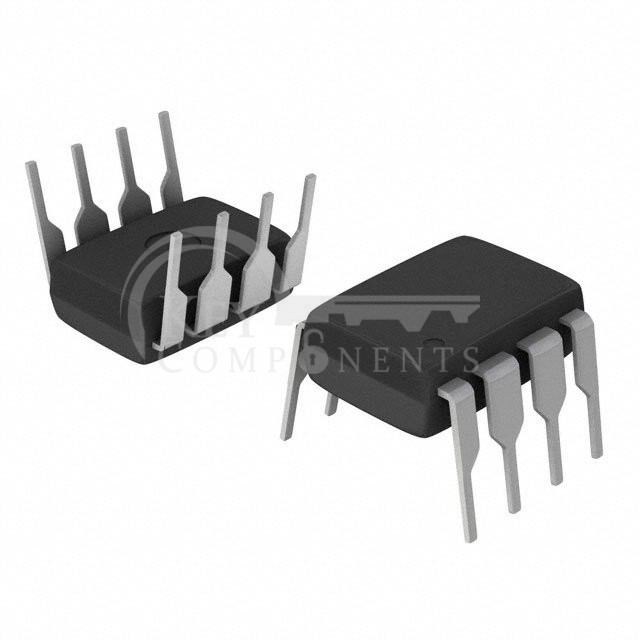

HCPL-4506
| Manufacturer Part | HCPL-4506 |
|---|---|
| Manufacturer | Broadcom Limited |
| Description | OPTOISO 3.75KV OPEN COLL 8DIP |
| Category | Isolators |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Number of Channels: | 1 |
| Inputs - Side 1/Side 2: | 1/0 |
| Voltage - Isolation: | 3750Vrms |
| Common Mode Transient Immunity (Min): | 15kV/µs |
| Input Type: | DC |
| Output Type: | Open Collector, Schottky Clamped |
| Current - Output / Channel: | 15 mA |
| Data Rate: | - |
| Propagation Delay tpLH / tpHL (Max): | 550ns, 400ns |
| Rise / Fall Time (Typ): | - |
| Voltage - Forward (Vf) (Typ): | 1.5V |
| Current - DC Forward (If) (Max): | 25mA |
| Voltage - Supply: | 4.5V ~ 30V |
| Operating Temperature: | -40°C ~ 100°C |
| Mounting Type: | Through Hole |
| Package / Case: | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package: | 8-DIP |
