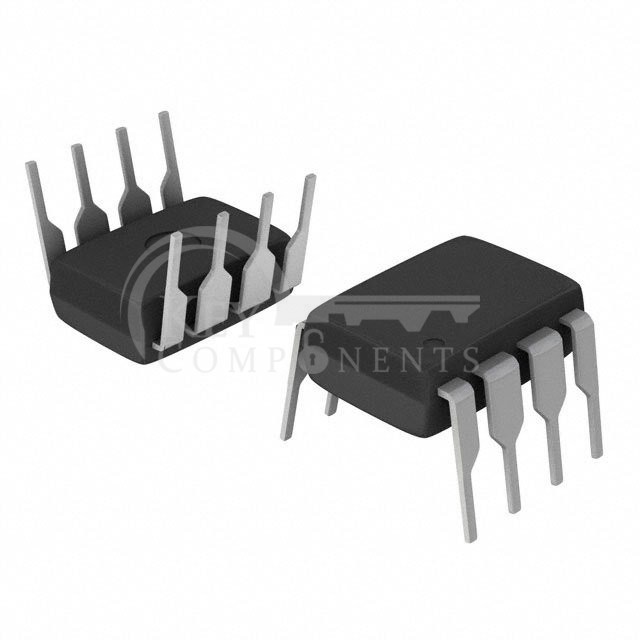

HCPL-4503-000E
| Manufacturer Part | HCPL-4503-000E |
|---|---|
| Manufacturer | Broadcom Limited |
| Description | OPTOISOLATOR 3.75KV TRANS 8-DIP |
| Category | Isolators |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Number of Channels: | 1 |
| Voltage - Isolation: | 3750Vrms |
| Current Transfer Ratio (Min): | 19% @ 16mA |
| Current Transfer Ratio (Max): | 50% @ 16mA |
| Turn On / Turn Off Time (Typ): | 1µs, 1µs (Max) |
| Rise / Fall Time (Typ): | - |
| Input Type: | DC |
| Output Type: | Transistor |
| Voltage - Output (Max): | 20V |
| Current - Output / Channel: | 8mA |
| Voltage - Forward (Vf) (Typ): | 1.5V |
| Current - DC Forward (If) (Max): | 25 mA |
| Vce Saturation (Max): | - |
| Operating Temperature: | -55°C ~ 100°C |
| Mounting Type: | Through Hole |
| Package / Case: | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package: | 8-DIP |
