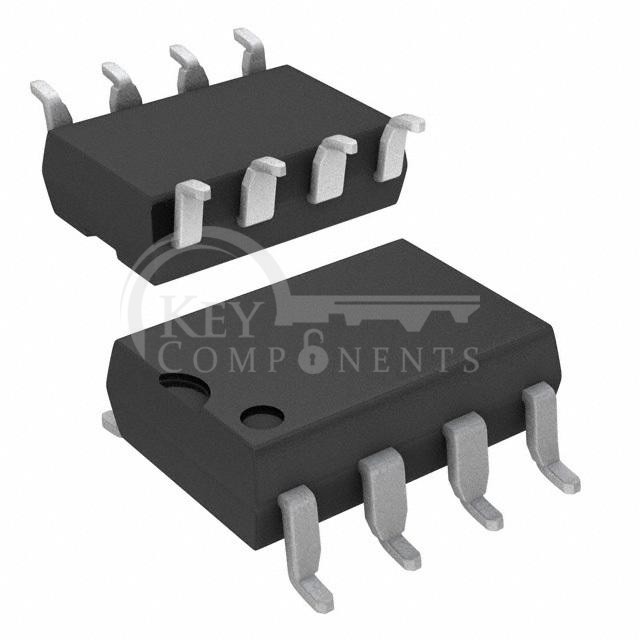

HCPL-2430-500E

Type	Description
Product Status:	Active
Number of Channels:	2
Inputs - Side 1/Side 2:	2/0
Voltage - Isolation:	3750Vrms
Common Mode Transient Immunity (Min):	1kV/µs
Input Type:	DC
Output Type:	Push-Pull, Totem Pole
Current - Output / Channel:	25 mA
Data Rate:	40MBd
Propagation Delay tpLH / tpHL (Max):	55ns, 55ns
Rise / Fall Time (Typ):	20ns, 10ns
Voltage - Forward (Vf) (Typ):	1.3V
Current - DC Forward (If) (Max):	10mA
Voltage - Supply:	4.75V ~ 5.25V
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Package / Case:	8-SMD, Gull Wing
Supplier Device Package:	8-DIP Gull Wing
