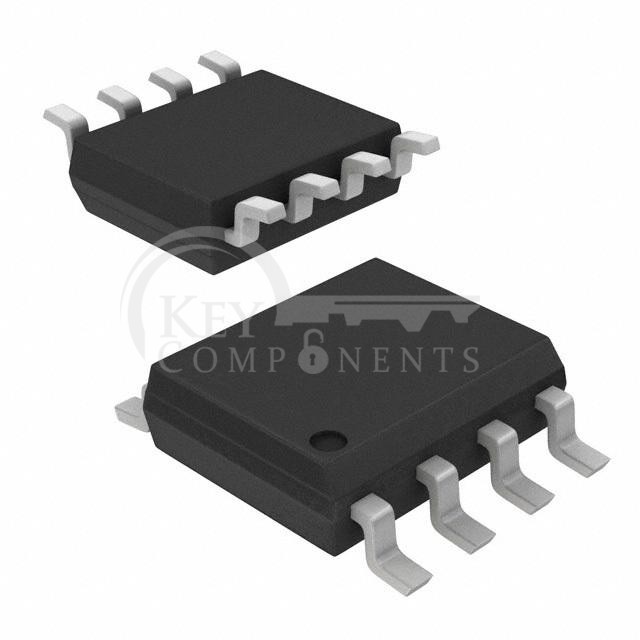

HCPL-0701-560E
| Manufacturer Part | HCPL-0701-560E |
|---|---|
| Manufacturer | Broadcom Limited |
| Description | OPTOISO 3.75KV DARL W/BASE 8SOIC |
| Category | Isolators |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Number of Channels: | 1 |
| Voltage - Isolation: | 3750Vrms |
| Current Transfer Ratio (Min): | 500% @ 1.6mA |
| Current Transfer Ratio (Max): | 2600% @ 1.6mA |
| Turn On / Turn Off Time (Typ): | 200ns, 2µs |
| Rise / Fall Time (Typ): | - |
| Input Type: | DC |
| Output Type: | Darlington with Base |
| Voltage - Output (Max): | 18V |
| Current - Output / Channel: | 60mA |
| Voltage - Forward (Vf) (Typ): | 1.4V |
| Current - DC Forward (If) (Max): | 20 mA |
| Vce Saturation (Max): | - |
| Operating Temperature: | -40°C ~ 85°C |
| Mounting Type: | Surface Mount |
| Package / Case: | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package: | 8-SO |
