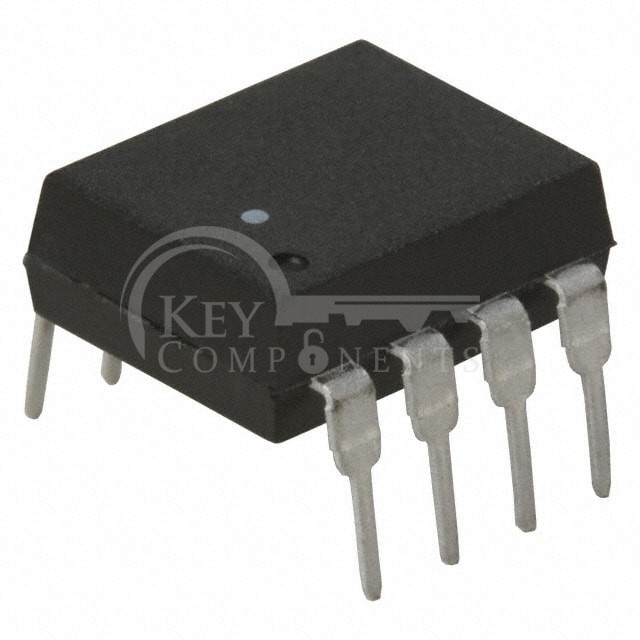

Manufacturer Part | HCNW4506 |
---|---|
Manufacturer | Broadcom Limited |
Description | OPTOISO 5KV OPEN COLLECTOR 8DIP |
Category | Isolators |
RoHS | Lead free / RoHS Compliant |
Warranty | 365 days |
Datasheet | - |
Type | Description |
---|---|
Product Status: | Active |
Number of Channels: | 1 |
Inputs - Side 1/Side 2: | 1/0 |
Voltage - Isolation: | 5000Vrms |
Common Mode Transient Immunity (Min): | 15kV/µs |
Input Type: | DC |
Output Type: | Open Collector, Schottky Clamped |
Current - Output / Channel: | 15 mA |
Data Rate: | - |
Propagation Delay tpLH / tpHL (Max): | 550ns, 400ns |
Rise / Fall Time (Typ): | - |
Voltage - Forward (Vf) (Typ): | 1.6V |
Current - DC Forward (If) (Max): | 25mA |
Voltage - Supply: | 4.5V ~ 30V |
Operating Temperature: | -40°C ~ 100°C |
Mounting Type: | Through Hole |
Package / Case: | 8-DIP (0.400", 10.16mm) |
Supplier Device Package: | 8-DIP |
