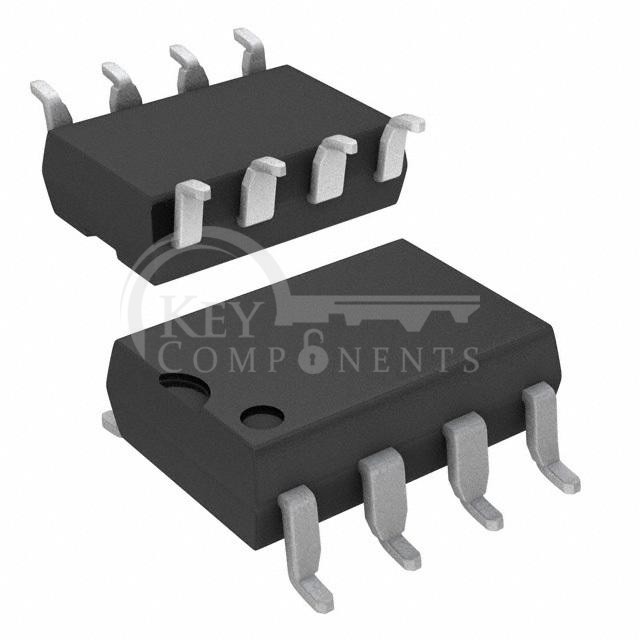

HCNR200-500E
| Manufacturer Part | HCNR200-500E |
|---|---|
| Manufacturer | Broadcom Limited |
| Description | OPTOISO 5KV LINEAR PHVOLT 8DIPGW |
| Category | Isolators |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Number of Channels: | 1 |
| Voltage - Isolation: | 5000Vrms |
| Current Transfer Ratio (Min): | 0.25% @ 10mA |
| Current Transfer Ratio (Max): | 0.75% @ 10mA |
| Turn On / Turn Off Time (Typ): | - |
| Rise / Fall Time (Typ): | - |
| Input Type: | DC |
| Output Type: | Photovoltaic, Linearized |
| Voltage - Output (Max): | - |
| Current - Output / Channel: | - |
| Voltage - Forward (Vf) (Typ): | 1.6V |
| Current - DC Forward (If) (Max): | 25 mA |
| Vce Saturation (Max): | - |
| Operating Temperature: | -55°C ~ 100°C |
| Mounting Type: | Surface Mount |
| Package / Case: | 8-SMD, Gull Wing |
| Supplier Device Package: | 8-DIP Gull Wing |
