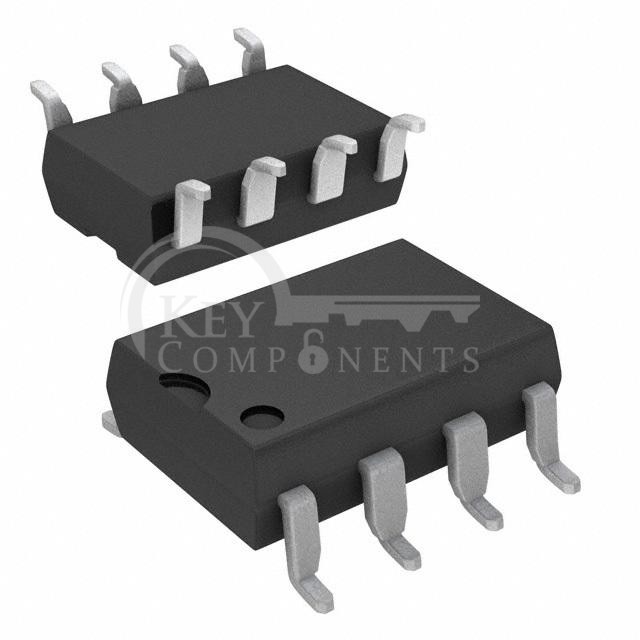

ASSR-V621-502E
| Manufacturer Part | ASSR-V621-502E |
|---|---|
| Manufacturer | Broadcom Limited |
| Description | OPTOISO 3.75KV 2CH PHVOLT 8SMD |
| Category | Isolators |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Number of Channels: | 2 |
| Voltage - Isolation: | 3750Vrms |
| Current Transfer Ratio (Min): | - |
| Current Transfer Ratio (Max): | - |
| Turn On / Turn Off Time (Typ): | 280µs, 30µs |
| Rise / Fall Time (Typ): | - |
| Input Type: | DC |
| Output Type: | Photovoltaic |
| Voltage - Output (Max): | 7V |
| Current - Output / Channel: | 20µA |
| Voltage - Forward (Vf) (Typ): | 1.3V |
| Current - DC Forward (If) (Max): | 30 mA |
| Vce Saturation (Max): | - |
| Operating Temperature: | -40°C ~ 85°C |
| Mounting Type: | Surface Mount |
| Package / Case: | 8-SMD, Gull Wing |
| Supplier Device Package: | 8-SMD |
Shipping
| Shipping Type | Ship Fee | Lead Time |
| DHL | $20.00-$40.00 (0.50 KG) | 2-5 days |
| Fedex | $20.00-$40.00 (0.50 KG) | 2-5 days |
| UPS | $20.00-$40.00 (0.50 KG) | 2-5 days |
| TNT | $20.00-$40.00 (0.50 KG) | 2-6 days |
| EMS | $20.00-$40.00 (0.50 KG) | 3-7 days |
| REGISTERED AIR MAIL | $2.5-$7 (0.50 KG) | 20-35 days |
Payment
| Payment method | Hand Fee |
| Telegraphic Transfer | charge US$30.00 banking fee. |
| Paypal | charge 4.0% service fee. |
| Credit Card | charge 4% service fee. |
| Western Union | charge US$0.00 banking fee. |
| Money Gram | charge US$0.00 banking fee. |
Guarantees
- We provide 90 days warranty;
- The Pre-Shipment Inspection (PSI) will be applied;
- If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
- If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
- If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
- Taxes & VAT will not be included;
