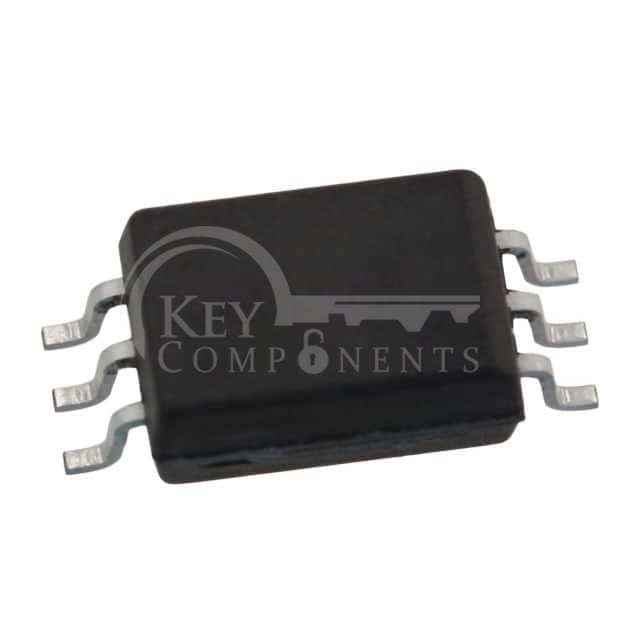

ACPL-W480-060E

Type	Description
Product Status:	Active
Number of Channels:	1
Inputs - Side 1/Side 2:	1/0
Voltage - Isolation:	5000Vrms
Common Mode Transient Immunity (Min):	20kV/µs
Input Type:	DC
Output Type:	Push-Pull, Totem Pole
Current - Output / Channel:	25 mA
Data Rate:	-
Propagation Delay tpLH / tpHL (Max):	350ns, 350ns
Rise / Fall Time (Typ):	16ns, 20ns
Voltage - Forward (Vf) (Typ):	1.7V
Current - DC Forward (If) (Max):	10mA
Voltage - Supply:	4.5V ~ 20V
Operating Temperature:	-40°C ~ 100°C
Mounting Type:	Surface Mount
Package / Case:	6-SOIC (0.268", 6.80mm Width)
Supplier Device Package:	6-SO Stretched
