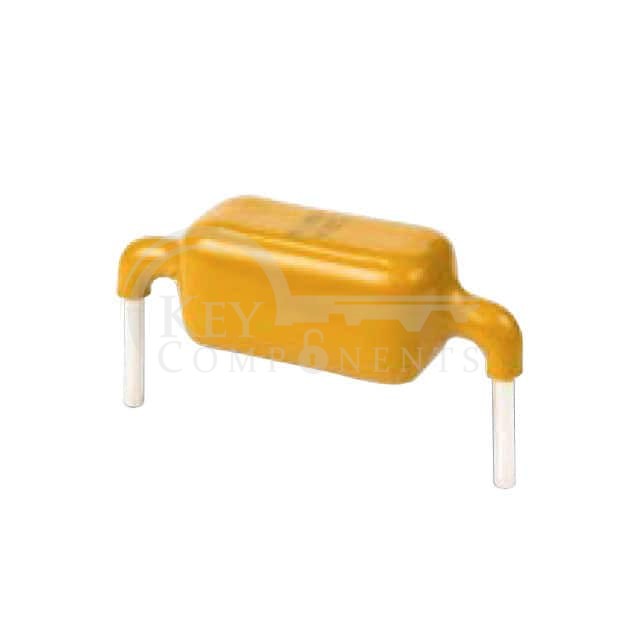

PTVS1-380C-TH
| Manufacturer Part | PTVS1-380C-TH |
|---|---|
| Manufacturer | Bourns Inc. |
| Description | TVS DIODE 380VWM 520VC |
| Category | Circuit Protection |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Zener |
| Unidirectional Channels: | - |
| Bidirectional Channels: | 1 |
| Voltage - Reverse Standoff (Typ): | 380V |
| Voltage - Breakdown (Min): | 401V |
| Voltage - Clamping (Max) @ Ipp: | 520V (Typ) |
| Current - Peak Pulse (10/1000µs): | 1000A (1kA) (8/20µs) |
| Power - Peak Pulse: | - |
| Power Line Protection: | No |
| Applications: | General Purpose |
| Capacitance @ Frequency: | 120pF @ 10kHz |
| Operating Temperature: | -55°C ~ 125°C (TJ) |
| Mounting Type: | Through Hole |
| Package / Case: | Axial, Right Angle Bend (24.15mm Center) |
| Supplier Device Package: | - |
