SSM2412P
| Manufacturer Part | SSM2412P |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Description | DUAL AUDIO ANALOG SWITCH |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Switch Circuit: | SPST - NO |
| Multiplexer/Demultiplexer Circuit: | 1:1 |
| Number of Circuits: | 2 |
| On-State Resistance (Max): | 85Ohm |
| Channel-to-Channel Matching (ΔRon): | - |
| Voltage - Supply, Single (V+): | 10V ~ 20V |
| Voltage - Supply, Dual (V±): | 10V ~ 20V |
| Switch Time (Ton, Toff) (Max): | 80ns, 85ns |
| -3db Bandwidth: | - |
| Charge Injection: | 2pC |
| Channel Capacitance (CS(off), CD(off)): | - |
| Current - Leakage (IS(off)) (Max): | 10nA |
| Crosstalk: | - |
| Operating Temperature: | -40°C ~ 85°C (TA) |
| Mounting Type: | Through Hole |

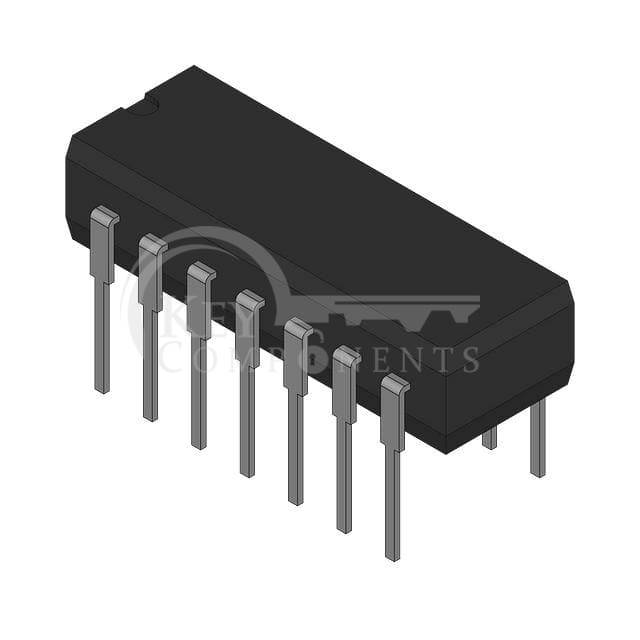

| Package / Case: | 14-DIP (0.300", 7.62mm) |
| Supplier Device Package: | 14-PDIP |
