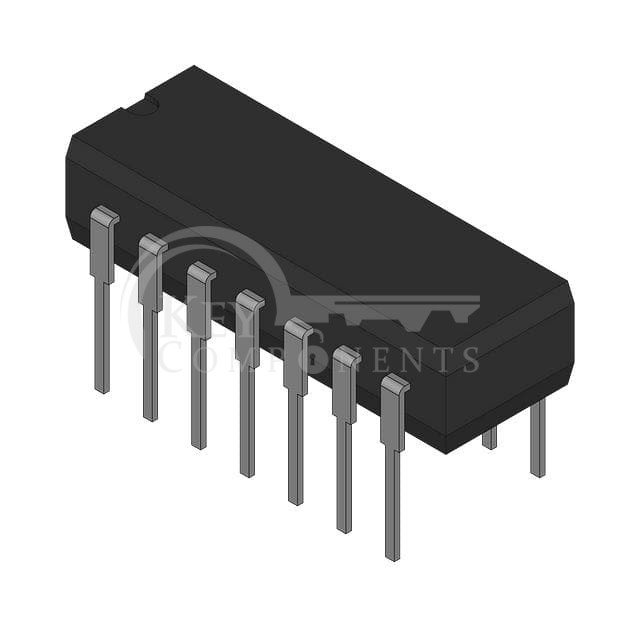

DAC01HY
| Manufacturer Part | DAC01HY |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Description | 6-BIT VOLTAGE OUTPUT DAC |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Number of Bits: | 6 |
| Number of D/A Converters: | 1 |
| Settling Time: | 3µs |
| Output Type: | Voltage - Unbuffered |
| Differential Output: | No |
| Data Interface: | Parallel |
| Reference Type: | Internal |
| Voltage - Supply, Analog: | 9.85V ~ 10.25V |
| Voltage - Supply, Digital: | 9.85V ~ 10.25V |
| INL/DNL (LSB): | - |
| Architecture: | - |
| Operating Temperature: | 0°C ~ 70°C |
| Package / Case: | 14-CDIP (0.300", 7.62mm) |
| Supplier Device Package: | 14-CERDIP |
| Mounting Type: | Through Hole |
