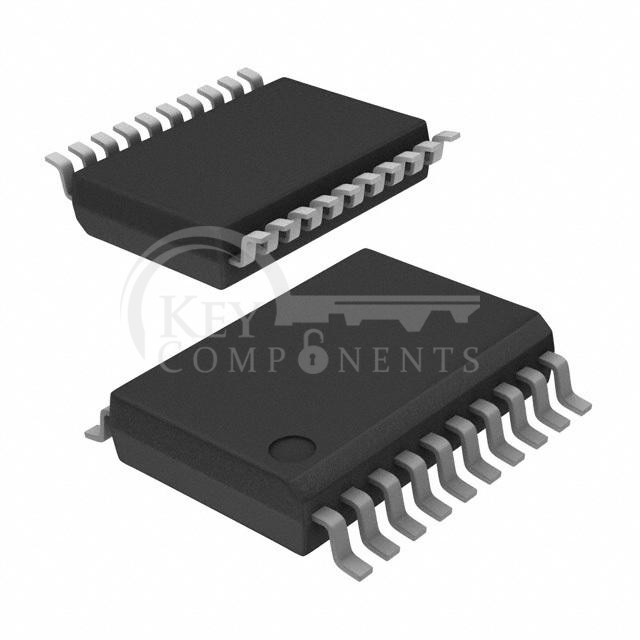

ADUM5211ARSZ
| Manufacturer Part | ADUM5211ARSZ |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Description | DGTL ISO 2500VRMS 2CH GP 20SSOP |
| Category | Isolators |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Technology: | Magnetic Coupling |
| Type: | General Purpose |
| Isolated Power: | Yes |
| Number of Channels: | 2 |
| Inputs - Side 1/Side 2: | 1/1 |
| Channel Type: | Unidirectional |
| Voltage - Isolation: | 2500Vrms |
| Common Mode Transient Immunity (Min): | 25kV/µs |
| Data Rate: | 1Mbps |
| Propagation Delay tpLH / tpHL (Max): | 50ns, 50ns |
| Pulse Width Distortion (Max): | 10ns |
| Rise / Fall Time (Typ): | 2.5ns, 2.5ns |
| Voltage - Supply: | 2.7V ~ 5.5V |
| Operating Temperature: | -40°C ~ 105°C |
| Mounting Type: | Surface Mount |
| Package / Case: | 20-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package: | 20-SSOP |
Shipping
| Shipping Type | Ship Fee | Lead Time |
| DHL | $20.00-$40.00 (0.50 KG) | 2-5 days |
| Fedex | $20.00-$40.00 (0.50 KG) | 2-5 days |
| UPS | $20.00-$40.00 (0.50 KG) | 2-5 days |
| TNT | $20.00-$40.00 (0.50 KG) | 2-6 days |
| EMS | $20.00-$40.00 (0.50 KG) | 3-7 days |
| REGISTERED AIR MAIL | $2.5-$7 (0.50 KG) | 20-35 days |
Payment
| Payment method | Hand Fee |
| Telegraphic Transfer | charge US$30.00 banking fee. |
| Paypal | charge 4.0% service fee. |
| Credit Card | charge 4% service fee. |
| Western Union | charge US$0.00 banking fee. |
| Money Gram | charge US$0.00 banking fee. |
Guarantees
- We provide 90 days warranty;
- The Pre-Shipment Inspection (PSI) will be applied;
- If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
- If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
- If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
- Taxes & VAT will not be included;
