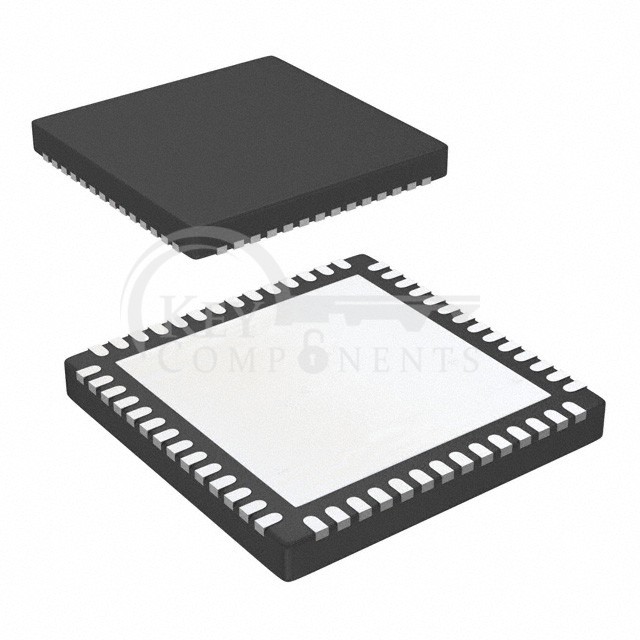

ADRF6755ACPZ
| Manufacturer Part | ADRF6755ACPZ |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Description | RF MODULATOR 100MHZ-2.4GHZ 56QFN |
| Category | RF/IF and RFID |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Function: | Modulator |
| LO Frequency: | - |
| RF Frequency: | 100MHz ~ 2.4GHz |
| P1dB: | 9dBm |
| Noise Floor: | -160.5dBm/Hz |
| Output Power: | -1.7dBm |
| Current - Supply: | 380 mA |
| Voltage - Supply: | 4.75V ~ 5.25V |
| Test Frequency: | 100MHz |
| Package / Case: | 56-VFQFN Exposed Pad, CSP |
