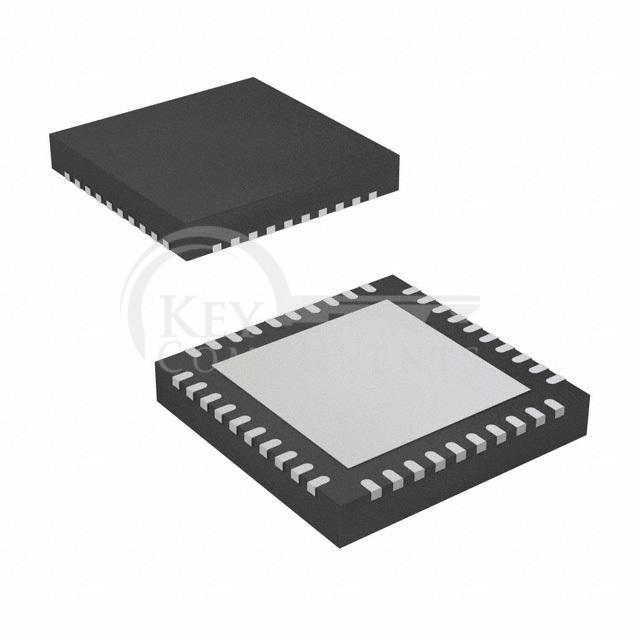

ADRF6602ACPZ-R7
| Manufacturer Part | ADRF6602ACPZ-R7 |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Description | IC MIXER 1.55-2.15GHZ 40LFCSP |
| Category | RF/IF and RFID |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| RF Type: | Cellular |
| Frequency: | 1.55GHz ~ 2.15GHz |
| Number of Mixers: | 1 |
| Gain: | 6.5dB |
| Noise Figure: | 15.8dB |
| Secondary Attributes: | Integrated PLL and VCO |
| Current - Supply: | 277mA |
| Voltage - Supply: | 4.75V ~ 5.25V |
| Mounting Type: | Surface Mount |
| Package / Case: | 40-VFQFN Exposed Pad, CSP |
| Supplier Device Package: | 40-LFCSP-VQ (6x6) |
