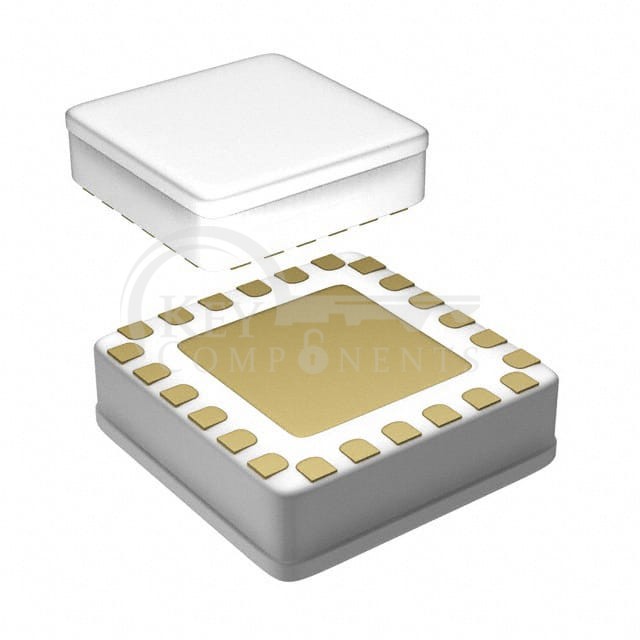

ADRF5044BCCZN-R7
| Manufacturer Part | ADRF5044BCCZN-R7 |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Description | IC RF SWITCH SP4T 30GHZ 24LGA |
| Category | RF/IF and RFID |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| RF Type: | General Purpose |
| Topology: | - |
| Circuit: | SP4T |
| Frequency Range: | 100MHz ~ 30GHz |
| Isolation: | 43dB |
| Insertion Loss: | 2.6dB |
| Test Frequency: | 30GHz |
| P1dB: | 28dBm |
| IIP3: | 50dBm |
| Features: | - |
| Impedance: | 50Ohm |
| Voltage - Supply: | 3.3V |
| Operating Temperature: | -40°C ~ 85°C (TC) |
| Package / Case: | 24-VFLGA Exposed Pad |
| Supplier Device Package: | 24-LGA (4x4) |
