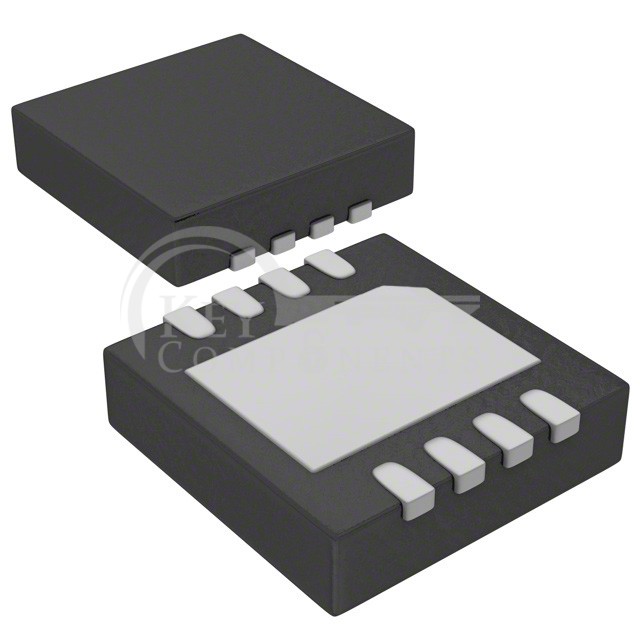

ADP7104ACPZ-R7
| Manufacturer Part | ADP7104ACPZ-R7 |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Description | IC REG LIN POS ADJ 500MA 8LFCSP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Output Configuration: | Positive |
| Output Type: | Adjustable |
| Number of Regulators: | 1 |
| Voltage - Input (Max): | 20V |
| Voltage - Output (Min/Fixed): | 1.22V |
| Voltage - Output (Max): | 19.45V |
| Voltage Dropout (Max): | 0.55V @ 500mA |
| Current - Output: | 500mA |
| Current - Quiescent (Iq): | 900 µA |
| Current - Supply (Max): | 1.6 mA |
| PSRR: | 80dB ~ 50dB (10kHz ~ 100kHz) |
| Control Features: | Enable, Power Good, Under Voltage Lockout |
| Protection Features: | Over Temperature, Short Circuit |
| Operating Temperature: | -40°C ~ 125°C |
| Mounting Type: | Surface Mount |
| Package / Case: | 8-WFDFN Exposed Pad, CSP |
| Supplier Device Package: | 8-LFCSP-WD (3x3) |
Shipping
| Shipping Type | Ship Fee | Lead Time |
| DHL | $20.00-$40.00 (0.50 KG) | 2-5 days |
| Fedex | $20.00-$40.00 (0.50 KG) | 2-5 days |
| UPS | $20.00-$40.00 (0.50 KG) | 2-5 days |
| TNT | $20.00-$40.00 (0.50 KG) | 2-6 days |
| EMS | $20.00-$40.00 (0.50 KG) | 3-7 days |
| REGISTERED AIR MAIL | $2.5-$7 (0.50 KG) | 20-35 days |
Payment
| Payment method | Hand Fee |
| Telegraphic Transfer | charge US$30.00 banking fee. |
| Paypal | charge 4.0% service fee. |
| Credit Card | charge 4% service fee. |
| Western Union | charge US$0.00 banking fee. |
| Money Gram | charge US$0.00 banking fee. |
Guarantees
- We provide 90 days warranty;
- The Pre-Shipment Inspection (PSI) will be applied;
- If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
- If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
- If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
- Taxes & VAT will not be included;
