ADL5591ACPZ-R7
| Manufacturer Part | ADL5591ACPZ-R7 |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Description | RF MODULATOR 1.805-1.99GHZ 36QFN |
| Category | RF/IF and RFID |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Function: | Modulator |
| LO Frequency: | - |
| RF Frequency: | 1.805GHz ~ 1.99GHz |
| P1dB: | 16dBm |
| Noise Floor: | -157dBM/Hz |
| Output Power: | 4.7dBm |
| Current - Supply: | 170 mA |
| Voltage - Supply: | 4.75V ~ 5.25V |
| Test Frequency: | 1.96GHz |

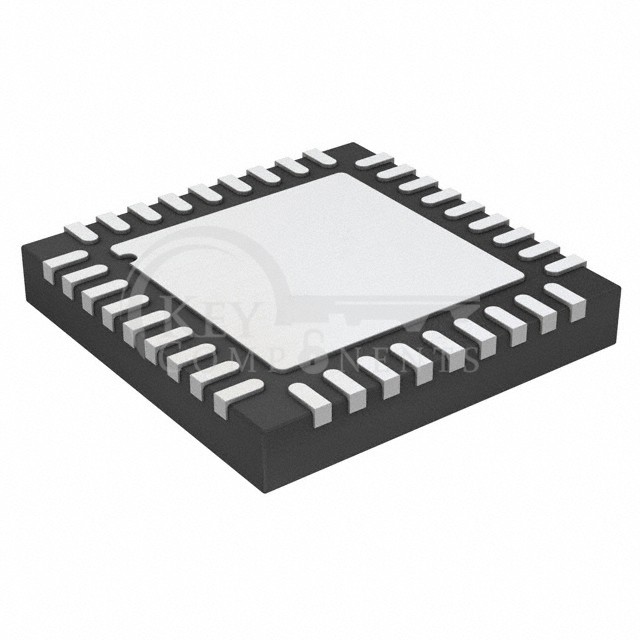

| Package / Case: | 36-VFQFN Exposed Pad, CSP |
Shipping
| Shipping Type | Ship Fee | Lead Time |
| DHL | $20.00-$40.00 (0.50 KG) | 2-5 days |
| Fedex | $20.00-$40.00 (0.50 KG) | 2-5 days |
| UPS | $20.00-$40.00 (0.50 KG) | 2-5 days |
| TNT | $20.00-$40.00 (0.50 KG) | 2-6 days |
| EMS | $20.00-$40.00 (0.50 KG) | 3-7 days |
| REGISTERED AIR MAIL | $2.5-$7 (0.50 KG) | 20-35 days |
Payment
| Payment method | Hand Fee |
| Telegraphic Transfer | charge US$30.00 banking fee. |
| Paypal | charge 4.0% service fee. |
| Credit Card | charge 4% service fee. |
| Western Union | charge US$0.00 banking fee. |
| Money Gram | charge US$0.00 banking fee. |
Guarantees
- We provide 90 days warranty;
- The Pre-Shipment Inspection (PSI) will be applied;
- If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
- If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
- If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
- Taxes & VAT will not be included;
