ADG884BCBZ-REEL

Type	Description
Product Status:	Obsolete
Switch Circuit:	SPDT
Multiplexer/Demultiplexer Circuit:	2:1
Number of Circuits:	2
On-State Resistance (Max):	370mOhm
Channel-to-Channel Matching (ΔRon):	10mOhm
Voltage - Supply, Single (V+):	1.8V ~ 5.5V
Voltage - Supply, Dual (V±):	-
Switch Time (Ton, Toff) (Max):	50ns, 20ns
-3db Bandwidth:	18MHz
Charge Injection:	125pC
Channel Capacitance (CS(off), CD(off)):	103pF
Current - Leakage (IS(off)) (Max):	200pA (Typ)
Crosstalk:	-120dB @ 100kHz
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount

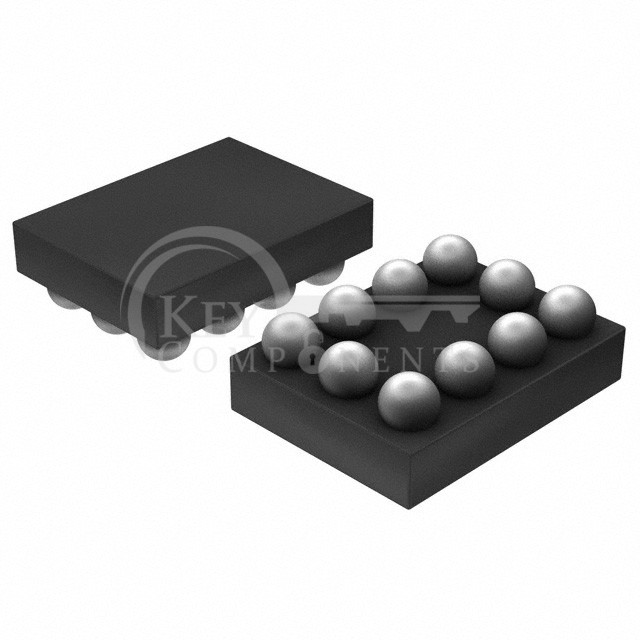

Package / Case:	10-UFBGA, WLCSP
Supplier Device Package:	10-WLCSP (2x1.5)
