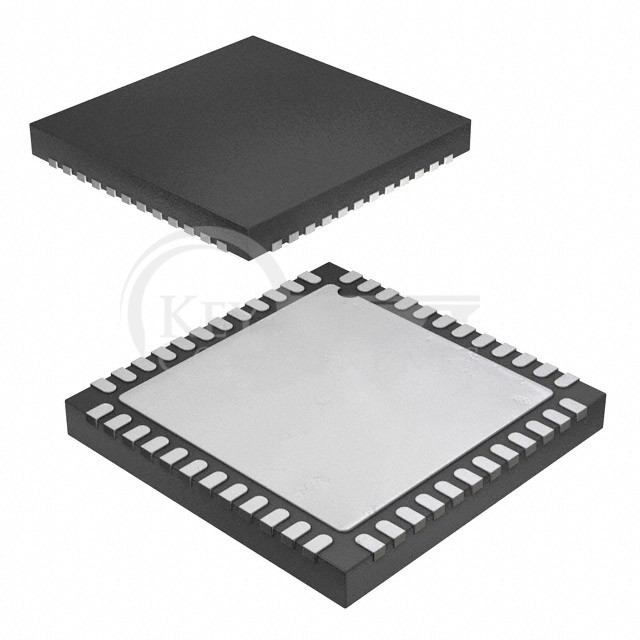

AD9545BCPZ
| Manufacturer Part | AD9545BCPZ |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Description | IC CLOCK SYNCHRONIZER 48LFCSP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Clock Synchronizer |
| PLL: | Yes |
| Input: | Differential or Single-Ended |
| Output: | CML, HCSL, LVDS or Single-Ended |
| Number of Circuits: | 2 |
| Ratio - Input:Output: | 2:6 |
| Differential - Input:Output: | Yes/Yes |
| Frequency - Max: | 2.4GHz |
| Divider/Multiplier: | Yes/Yes |
| Voltage - Supply: | 1.71V ~ 3.465V |
| Operating Temperature: | -40°C ~ 85°C |
| Mounting Type: | Surface Mount |
| Package / Case: | 48-WFQFN Exposed Pad, CSP |
| Supplier Device Package: | 48-LFCSP (7x7) |
