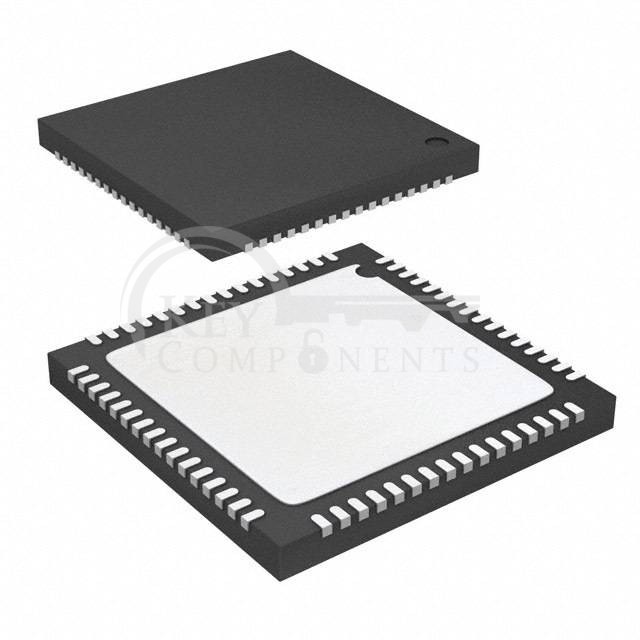

AD9520-1BCPZ
| Manufacturer Part | AD9520-1BCPZ |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Description | IC CLOCK GEN 2.5GHZ VCO 64LFCSP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Clock Generator, Fanout Distribution |
| PLL: | Yes |
| Input: | CMOS, LVDS, LVPECL |
| Output: | CMOS, LVPECL |
| Number of Circuits: | 1 |
| Ratio - Input:Output: | 2:12, 2:24 |
| Differential - Input:Output: | Yes/Yes |
| Frequency - Max: | 2.65GHz |
| Divider/Multiplier: | Yes/No |
| Voltage - Supply: | 3.135V ~ 3.465V |
| Operating Temperature: | -40°C ~ 85°C |
| Mounting Type: | Surface Mount |
| Package / Case: | 64-VFQFN Exposed Pad, CSP |
| Supplier Device Package: | 64-LFCSP-VQ (9x9) |
Shipping
| Shipping Type | Ship Fee | Lead Time |
| DHL | $20.00-$40.00 (0.50 KG) | 2-5 days |
| Fedex | $20.00-$40.00 (0.50 KG) | 2-5 days |
| UPS | $20.00-$40.00 (0.50 KG) | 2-5 days |
| TNT | $20.00-$40.00 (0.50 KG) | 2-6 days |
| EMS | $20.00-$40.00 (0.50 KG) | 3-7 days |
| REGISTERED AIR MAIL | $2.5-$7 (0.50 KG) | 20-35 days |
Payment
| Payment method | Hand Fee |
| Telegraphic Transfer | charge US$30.00 banking fee. |
| Paypal | charge 4.0% service fee. |
| Credit Card | charge 4% service fee. |
| Western Union | charge US$0.00 banking fee. |
| Money Gram | charge US$0.00 banking fee. |
Guarantees
- We provide 90 days warranty;
- The Pre-Shipment Inspection (PSI) will be applied;
- If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
- If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
- If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
- Taxes & VAT will not be included;
