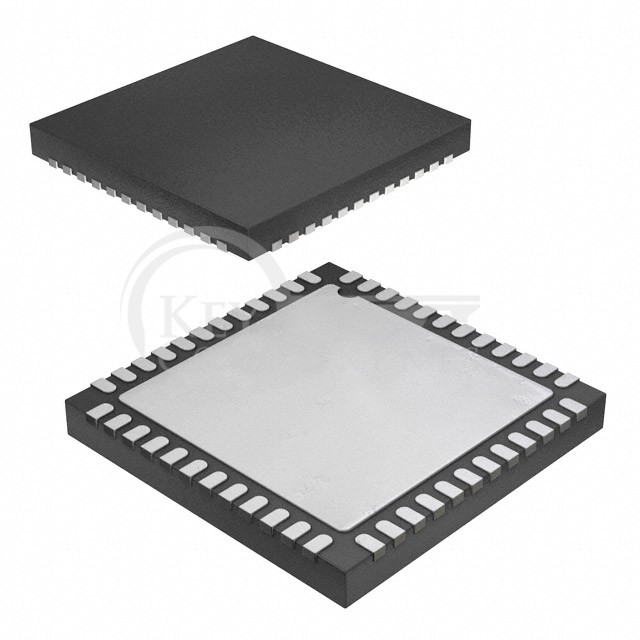

AD9250BCPZ-170
| Manufacturer Part | AD9250BCPZ-170 |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Description | IC ADC 14BIT PIPELINED 48LFCSP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Number of Bits: | 14 |
| Sampling Rate (Per Second): | 170M |
| Number of Inputs: | 2 |
| Input Type: | Differential |
| Data Interface: | JESD204B |
| Configuration: | S/H-ADC |
| Ratio - S/H:ADC: | 1:1 |
| Number of A/D Converters: | 2 |
| Architecture: | Pipelined |
| Reference Type: | Internal |
| Voltage - Supply, Analog: | 1.7V ~ 1.9V |
| Voltage - Supply, Digital: | 1.7V ~ 1.9V |
| Features: | Simultaneous Sampling |
| Operating Temperature: | -40°C ~ 85°C |
| Package / Case: | 48-WFQFN Exposed Pad, CSP |
| Supplier Device Package: | 48-LFCSP (7x7) |
| Mounting Type: | Surface Mount |
Shipping
| Shipping Type | Ship Fee | Lead Time |
| DHL | $20.00-$40.00 (0.50 KG) | 2-5 days |
| Fedex | $20.00-$40.00 (0.50 KG) | 2-5 days |
| UPS | $20.00-$40.00 (0.50 KG) | 2-5 days |
| TNT | $20.00-$40.00 (0.50 KG) | 2-6 days |
| EMS | $20.00-$40.00 (0.50 KG) | 3-7 days |
| REGISTERED AIR MAIL | $2.5-$7 (0.50 KG) | 20-35 days |
Payment
| Payment method | Hand Fee |
| Telegraphic Transfer | charge US$30.00 banking fee. |
| Paypal | charge 4.0% service fee. |
| Credit Card | charge 4% service fee. |
| Western Union | charge US$0.00 banking fee. |
| Money Gram | charge US$0.00 banking fee. |
Guarantees
- We provide 90 days warranty;
- The Pre-Shipment Inspection (PSI) will be applied;
- If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
- If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
- If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
- Taxes & VAT will not be included;
