AD9233BCPZRL7-125
| Manufacturer Part | AD9233BCPZRL7-125 |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Description | IC ADC 12BIT PIPELINED 48LFCSP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Number of Bits: | 12 |
| Sampling Rate (Per Second): | 125M |
| Number of Inputs: | 1 |
| Input Type: | Differential, Single Ended |
| Data Interface: | Parallel |
| Configuration: | S/H-ADC |
| Ratio - S/H:ADC: | 1:1 |
| Number of A/D Converters: | 1 |
| Architecture: | Pipelined |
| Reference Type: | Internal |
| Voltage - Supply, Analog: | 1.7V ~ 1.9V |
| Voltage - Supply, Digital: | 1.7V ~ 3.6V |
| Features: | - |
| Operating Temperature: | -40°C ~ 85°C |

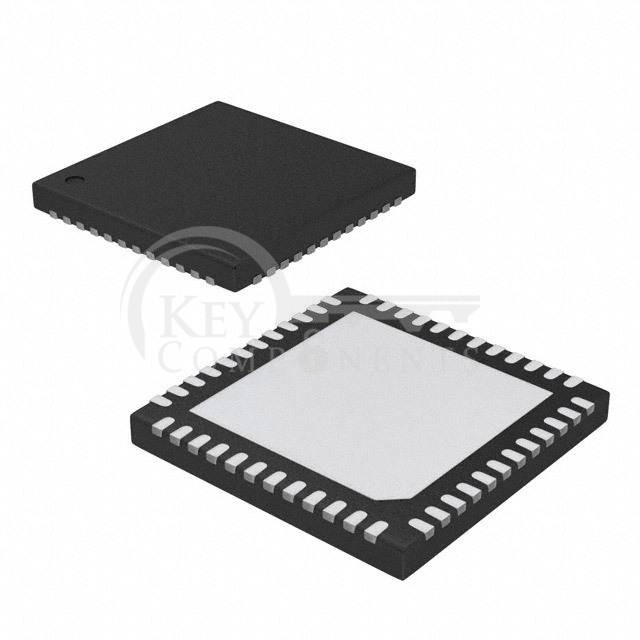

| Package / Case: | 48-VFQFN Exposed Pad, CSP |
| Supplier Device Package: | 48-LFCSP-VQ (7x7) |
| Mounting Type: | Surface Mount |
