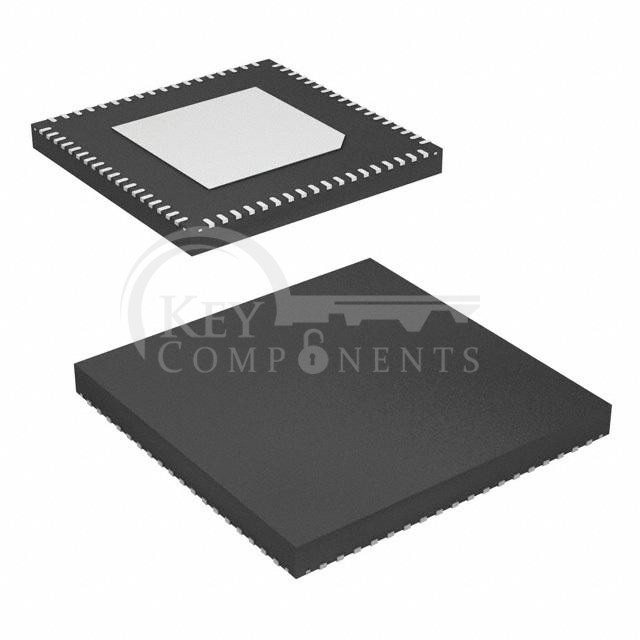

AD9121BCPZRL
| Manufacturer Part | AD9121BCPZRL |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Description | IC DAC 14BIT A-OUT 72LFCSP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Number of Bits: | 14 |
| Number of D/A Converters: | 2 |
| Settling Time: | 20ns (Typ) |
| Output Type: | Current - Unbuffered |
| Differential Output: | Yes |
| Data Interface: | LVDS - Parallel |
| Reference Type: | External, Internal |
| Voltage - Supply, Analog: | 3.13V ~ 3.47V |
| Voltage - Supply, Digital: | 1.71V ~ 1.89V |
| INL/DNL (LSB): | ±1, ±0.5 |
| Architecture: | Current Source |
| Operating Temperature: | -40°C ~ 85°C |
| Package / Case: | 72-VFQFN Exposed Pad, CSP |
| Supplier Device Package: | 72-LFCSP-VQ (10x10) |
| Mounting Type: | Surface Mount |
