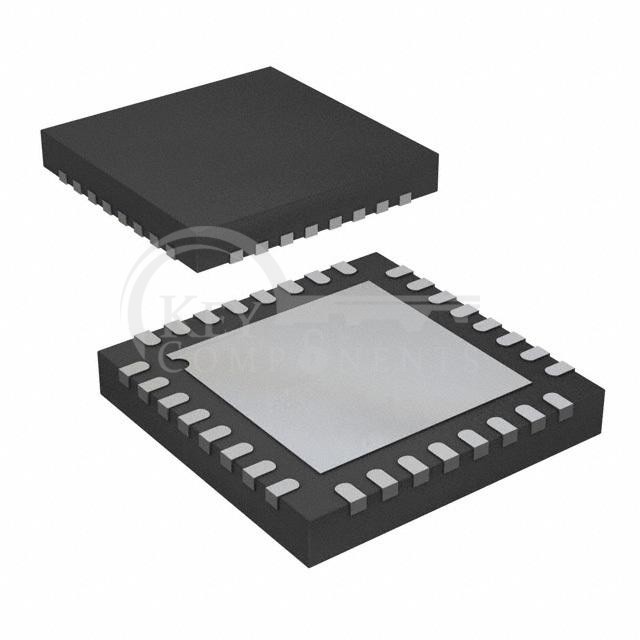

AD8194ACPZ-R7
| Manufacturer Part | AD8194ACPZ-R7 |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Description | IC SWITCH TMDS BUFF 2:1 32LFCSP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Applications: | Video |
| Multiplexer/Demultiplexer Circuit: | 2:1 |
| Switch Circuit: | - |
| Number of Channels: | 4 |
| On-State Resistance (Max): | - |
| Voltage - Supply, Single (V+): | 3V ~ 3.6V |
| Voltage - Supply, Dual (V±): | - |
| -3db Bandwidth: | - |
| Features: | TMDS, HDMI, DVI, Buffered |
| Operating Temperature: | -40°C ~ 85°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | 32-VFQFN Exposed Pad, CSP |
| Supplier Device Package: | 32-LFCSP (5x5) |
