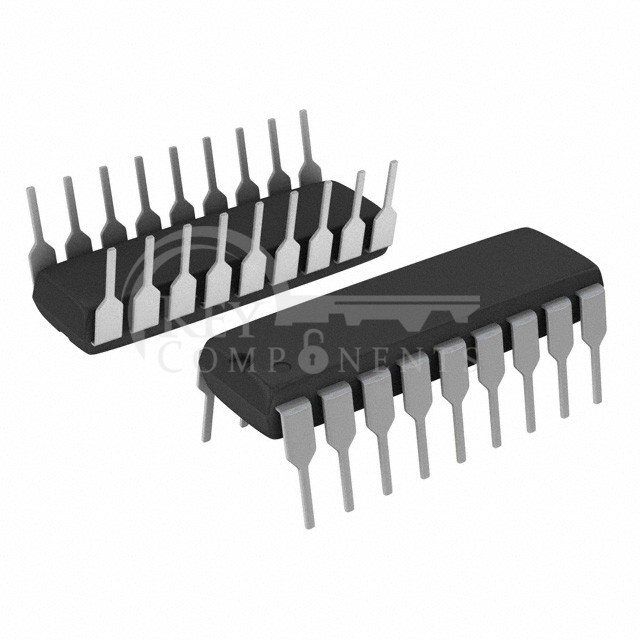

AD7574JN
| Manufacturer Part | AD7574JN |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Description | IC ADC 8BIT SAR 18DIP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Number of Bits: | 8 |
| Sampling Rate (Per Second): | - |
| Number of Inputs: | 1 |
| Input Type: | Single Ended |
| Data Interface: | Parallel |
| Configuration: | ADC |
| Ratio - S/H:ADC: | - |
| Number of A/D Converters: | 1 |
| Architecture: | SAR |
| Reference Type: | External |
| Voltage - Supply, Analog: | 5V |
| Voltage - Supply, Digital: | 5V |
| Features: | - |
| Operating Temperature: | 0°C ~ 70°C |
| Package / Case: | 18-DIP (0.300", 7.62mm) |
| Supplier Device Package: | 18-PDIP |
| Mounting Type: | Through Hole |
