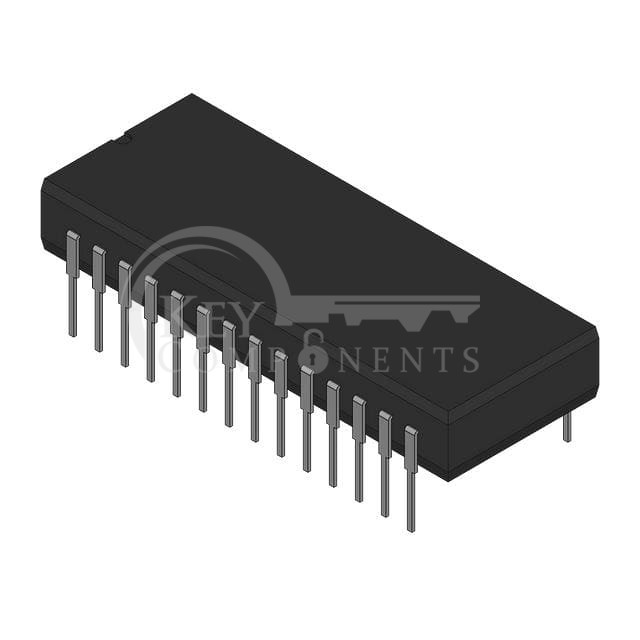

AD7507KQ
| Manufacturer Part | AD7507KQ |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Description | DIFFERENTIAL MUX,8 CHANNEL |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Switch Circuit: | SP4T |
| Multiplexer/Demultiplexer Circuit: | 8:1 |
| Number of Circuits: | 2 |
| On-State Resistance (Max): | 450Ohm |
| Channel-to-Channel Matching (ΔRon): | 18Ohm |
| Voltage - Supply, Single (V+): | ±15V |
| Voltage - Supply, Dual (V±): | ±15V |
| Switch Time (Ton, Toff) (Max): | 1.5µs, 1µs |
| -3db Bandwidth: | - |
| Charge Injection: | 2pC |
| Channel Capacitance (CS(off), CD(off)): | 5pF, 20pF |
| Current - Leakage (IS(off)) (Max): | 5nA |
| Crosstalk: | - |
| Operating Temperature: | -25°C ~ 85°C |
| Mounting Type: | Through Hole |
| Package / Case: | 28-CDIP (0.600", 15.24mm) |
| Supplier Device Package: | 28-CDIP |
Shipping
| Shipping Type | Ship Fee | Lead Time |
| DHL | $20.00-$40.00 (0.50 KG) | 2-5 days |
| Fedex | $20.00-$40.00 (0.50 KG) | 2-5 days |
| UPS | $20.00-$40.00 (0.50 KG) | 2-5 days |
| TNT | $20.00-$40.00 (0.50 KG) | 2-6 days |
| EMS | $20.00-$40.00 (0.50 KG) | 3-7 days |
| REGISTERED AIR MAIL | $2.5-$7 (0.50 KG) | 20-35 days |
Payment
| Payment method | Hand Fee |
| Telegraphic Transfer | charge US$30.00 banking fee. |
| Paypal | charge 4.0% service fee. |
| Credit Card | charge 4% service fee. |
| Western Union | charge US$0.00 banking fee. |
| Money Gram | charge US$0.00 banking fee. |
Guarantees
- We provide 90 days warranty;
- The Pre-Shipment Inspection (PSI) will be applied;
- If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
- If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
- If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
- Taxes & VAT will not be included;
