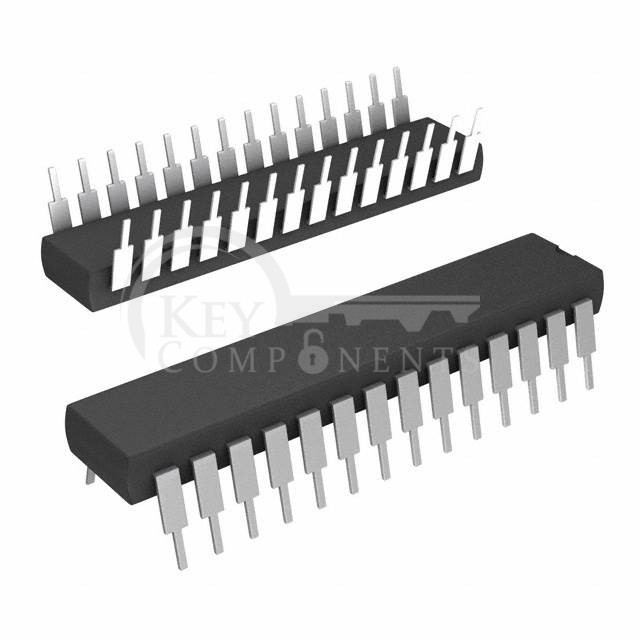

AD7506JNZ
| Manufacturer Part | AD7506JNZ |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Description | IC MULTIPLEXER 16X1 28DIP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Switch Circuit: | - |
| Multiplexer/Demultiplexer Circuit: | 16:1 |
| Number of Circuits: | 1 |
| On-State Resistance (Max): | 450Ohm |
| Channel-to-Channel Matching (ΔRon): | 18Ohm |
| Voltage - Supply, Single (V+): | - |
| Voltage - Supply, Dual (V±): | ±15V |
| Switch Time (Ton, Toff) (Max): | 1.5µs, 1µs |
| -3db Bandwidth: | - |
| Charge Injection: | - |
| Channel Capacitance (CS(off), CD(off)): | 5pF, 40pF |
| Current - Leakage (IS(off)) (Max): | - |
| Crosstalk: | - |
| Operating Temperature: | 0°C ~ 70°C (TA) |
| Mounting Type: | Through Hole |
| Package / Case: | 28-DIP (0.600", 15.24mm) |
| Supplier Device Package: | 28-PDIP |
