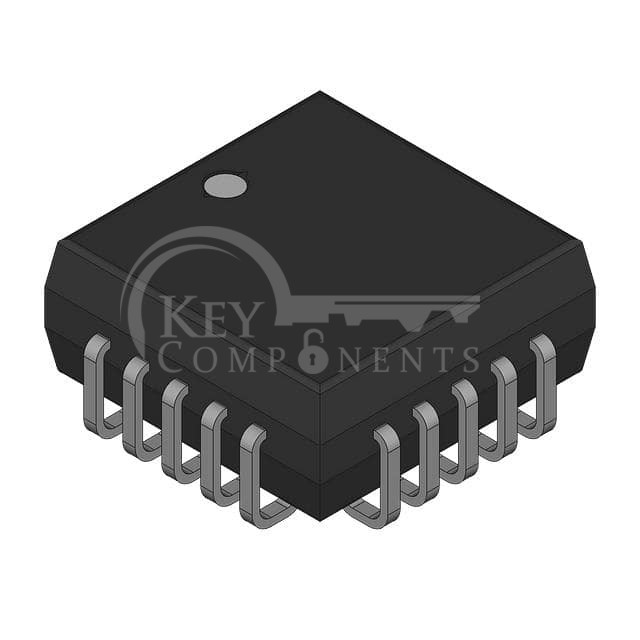

AD558KP
| Manufacturer Part | AD558KP |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Description | IC DAC 8BIT V-OUT 20PLCC |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Number of Bits: | 8 |
| Number of D/A Converters: | 1 |
| Settling Time: | 3µs |
| Output Type: | Voltage - Buffered |
| Differential Output: | No |
| Data Interface: | Parallel |
| Reference Type: | Internal |
| Voltage - Supply, Analog: | 4.5V ~ 16.5V |
| Voltage - Supply, Digital: | 4.5V ~ 16.5V |
| INL/DNL (LSB): | ±0.25 (Max), - |
| Architecture: | R-2R |
| Operating Temperature: | 0°C ~ 70°C |
| Package / Case: | 20-LCC (J-Lead) |
| Supplier Device Package: | 20-PLCC (9x9) |
| Mounting Type: | Surface Mount |
