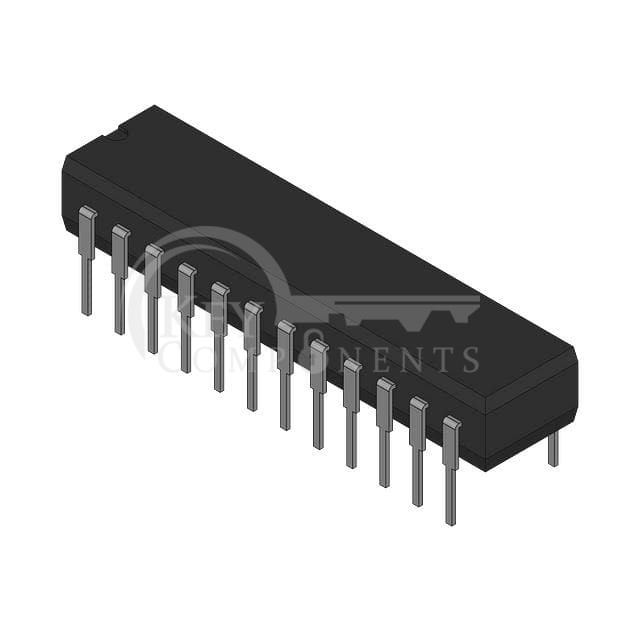

MX7672KN03
| Manufacturer Part | MX7672KN03 |
|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Description | IC ADC 12BIT SAR 24DIP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Number of Bits: | 12 |
| Sampling Rate (Per Second): | 308k |
| Number of Inputs: | 2 |
| Input Type: | Single Ended |
| Data Interface: | Parallel |
| Configuration: | S/H-ADC |
| Ratio - S/H:ADC: | 1:1 |
| Number of A/D Converters: | 1 |
| Architecture: | SAR |
| Reference Type: | External |
| Voltage - Supply, Analog: | 5V, -10.8V ~ 13.2V |
| Voltage - Supply, Digital: | 5V, -10.8V ~ 13.2V |
| Features: | - |
| Operating Temperature: | 0°C ~ 70°C |
| Package / Case: | 24-DIP (0.300", 7.62mm) |
| Supplier Device Package: | 24-PDIP |
| Mounting Type: | Through Hole |
