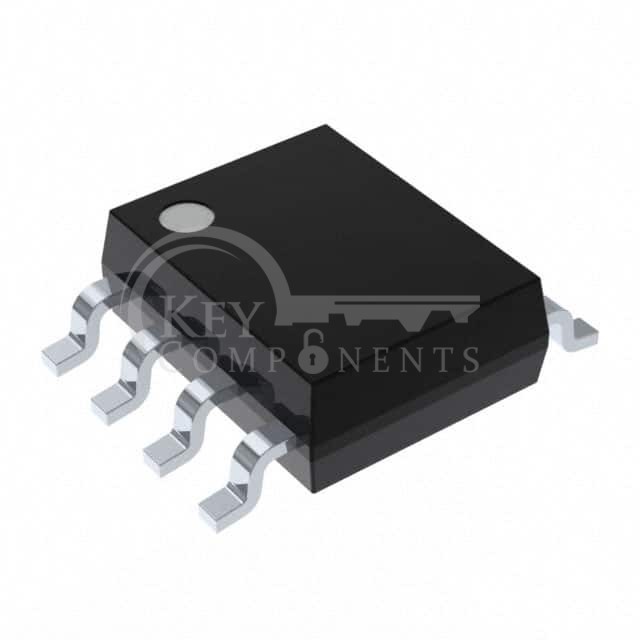

MAX5541ESA
| Manufacturer Part | MAX5541ESA |
|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Description | IC DAC 16BIT V-OUT 8SOIC |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Number of Bits: | 16 |
| Number of D/A Converters: | 1 |
| Settling Time: | 1µs (Typ) |
| Output Type: | Voltage - Unbuffered |
| Differential Output: | No |
| Data Interface: | SPI |
| Reference Type: | External |
| Voltage - Supply, Analog: | 5V |
| Voltage - Supply, Digital: | 5V |
| INL/DNL (LSB): | ±4, ±0.5 |
| Architecture: | R-2R |
| Operating Temperature: | -40°C ~ 85°C |
| Package / Case: | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package: | 8-SOIC |
| Mounting Type: | Surface Mount |
