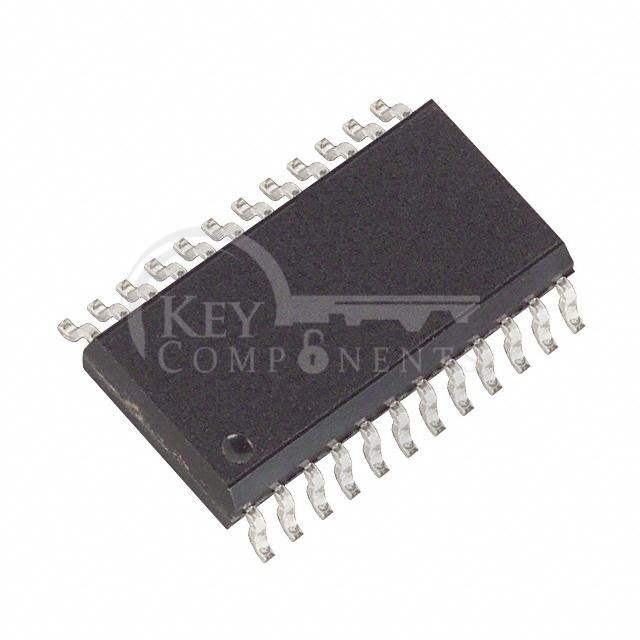

MAX526DCWG
| Manufacturer Part | MAX526DCWG |
|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Description | IC DAC 12BIT V-OUT 24SOIC |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Number of Bits: | 12 |
| Number of D/A Converters: | 4 |
| Settling Time: | 3µs (Typ) |
| Output Type: | Voltage - Buffered |
| Differential Output: | No |
| Data Interface: | Parallel |
| Reference Type: | External |
| Voltage - Supply, Analog: | 10.8V ~ 16.5V, -5V |
| Voltage - Supply, Digital: | - |
| INL/DNL (LSB): | ±1 (Max), ±1 (Max) |
| Architecture: | R-2R |
| Operating Temperature: | 0°C ~ 70°C |
| Package / Case: | 24-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package: | 24-SOIC |
| Mounting Type: | Surface Mount |
