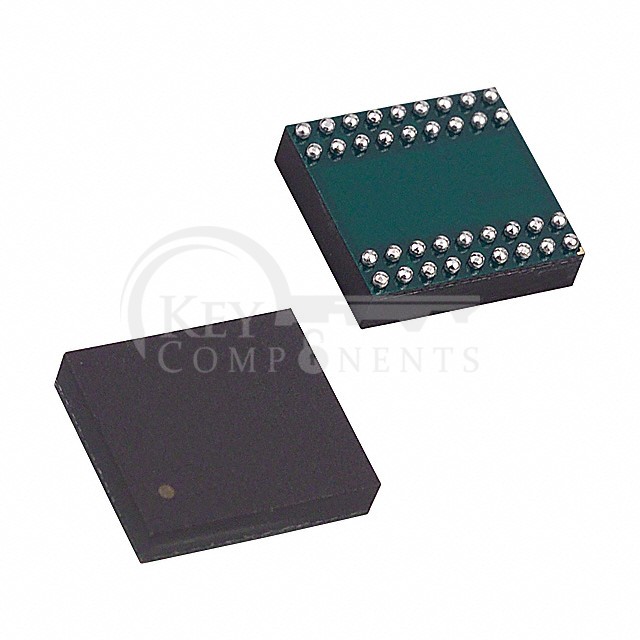

DS32KHZN/WBGA
| Manufacturer Part | DS32KHZN/WBGA |
|---|---|
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Description | XTAL OSC TCXO 32.7680KHZ CMOS |
| Category | Crystals, Oscillators, Resonators |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Base Resonator: | Crystal |
| Type: | TCXO |
| Frequency: | 32.768 kHz |
| Function: | - |
| Output: | CMOS |
| Voltage - Supply: | 5V |
| Frequency Stability: | ±7.5ppm |
| Absolute Pull Range (APR): | - |
| Operating Temperature: | -40°C ~ 85°C |
| Spread Spectrum Bandwidth: | - |
| Current - Supply (Max): | 220µA |
| Ratings: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | 36-BGA |
| Size / Dimension: | 0.450" L x 0.400" W (11.43mm x 10.16mm) |
| Height - Seated (Max): | 0.101" (2.56mm) |
Shipping
| Shipping Type | Ship Fee | Lead Time |
| DHL | $20.00-$40.00 (0.50 KG) | 2-5 days |
| Fedex | $20.00-$40.00 (0.50 KG) | 2-5 days |
| UPS | $20.00-$40.00 (0.50 KG) | 2-5 days |
| TNT | $20.00-$40.00 (0.50 KG) | 2-6 days |
| EMS | $20.00-$40.00 (0.50 KG) | 3-7 days |
| REGISTERED AIR MAIL | $2.5-$7 (0.50 KG) | 20-35 days |
Payment
| Payment method | Hand Fee |
| Telegraphic Transfer | charge US$30.00 banking fee. |
| Paypal | charge 4.0% service fee. |
| Credit Card | charge 4% service fee. |
| Western Union | charge US$0.00 banking fee. |
| Money Gram | charge US$0.00 banking fee. |
Guarantees
- We provide 90 days warranty;
- The Pre-Shipment Inspection (PSI) will be applied;
- If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
- If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
- If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
- Taxes & VAT will not be included;
