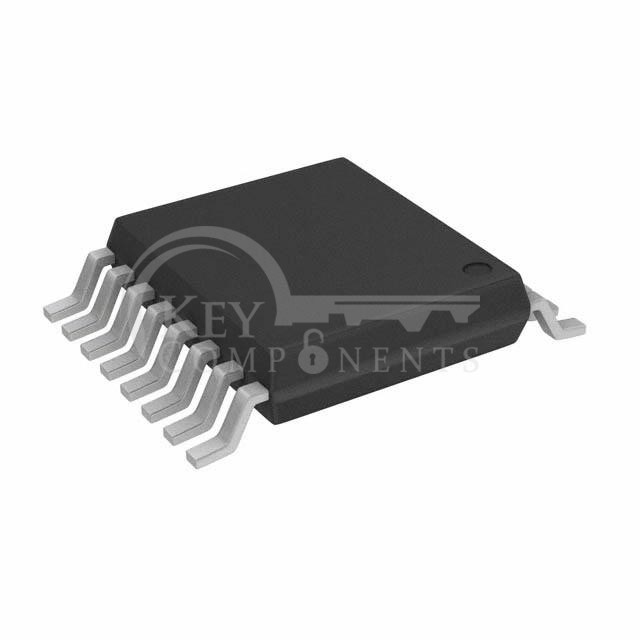

AS1523-T
| Manufacturer Part | AS1523-T |
|---|---|
| Manufacturer | ams |
| Description | IC ADC 10BIT SAR 16TSSOP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Number of Bits: | 10 |
| Sampling Rate (Per Second): | 300k |
| Number of Inputs: | 2, 4 |
| Input Type: | Differential, Pseudo-Differential, Single Ended |
| Data Interface: | SPI |
| Configuration: | S/H-ADC |
| Ratio - S/H:ADC: | 1:1 |
| Number of A/D Converters: | 1 |
| Architecture: | SAR |
| Reference Type: | External, Internal |
| Voltage - Supply, Analog: | 2.7V ~ 3.6V |
| Voltage - Supply, Digital: | 2.7V ~ 3.6V |
| Features: | - |
| Operating Temperature: | -40°C ~ 85°C |
| Package / Case: | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package: | 16-TSSOP |
| Mounting Type: | Surface Mount |
