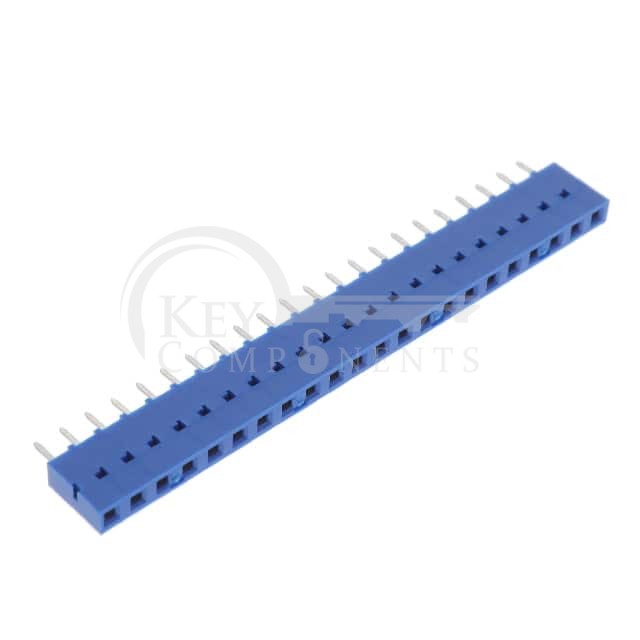

76341-322LF

Type	Description
Product Status:	Active
Connector Type:	Receptacle
Contact Type:	Female Socket
Style:	Board to Board
Number of Positions:	22
Number of Positions Loaded:	All
Pitch - Mating:	0.100" (2.54mm)
Number of Rows:	1
Row Spacing - Mating:	-
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	30.0µin (0.76µm)
Insulation Color:	Blue
Insulation Height:	0.275" (6.99mm)
Contact Length - Post:	0.114" (2.90mm)
Operating Temperature:	-
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Tin
Mated Stacking Heights:	11.04mm
Ingress Protection:	-
Features:	-
Current Rating (Amps):	-
Voltage Rating:	-
