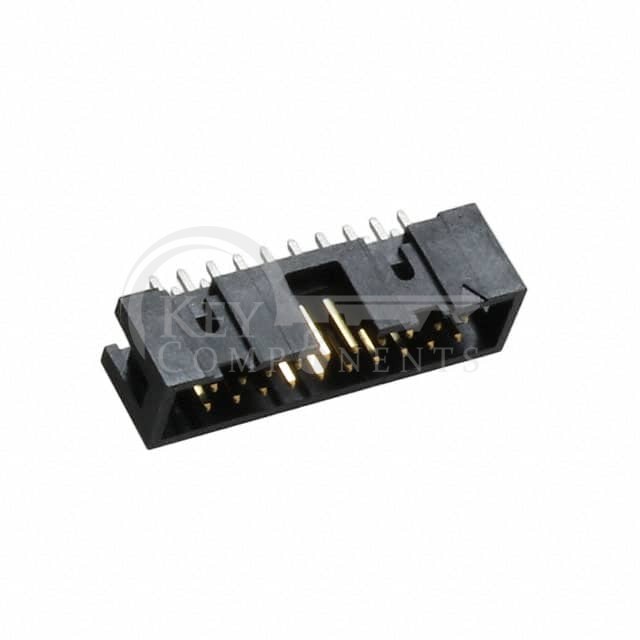

Manufacturer Part | 52601-G20-4LF |
---|---|
Manufacturer | Amphenol ICC (FCI) |
Description | CONN HEADER VERT 20POS 2.54MM |
Category | Connectors, Interconnects |
RoHS | Lead free / RoHS Compliant |
Warranty | 365 days |
Datasheet | - |
Type | Description |
---|---|
Product Status: | Active |
Connector Type: | Header |
Contact Type: | Male Pin |
Pitch - Mating: | 0.100" (2.54mm) |
Number of Positions: | 20 |
Number of Rows: | 2 |
Row Spacing - Mating: | 0.100" (2.54mm) |
Number of Positions Loaded: | All |
Style: | Board to Board or Cable |
Shrouding: | Shrouded - 4 Wall |
Mounting Type: | Through Hole |
Termination: | Solder |
Fastening Type: | Push-Pull |
Contact Length - Mating: | 0.230" (5.84mm) |
Contact Length - Post: | 0.120" (3.05mm) |
Overall Contact Length: | - |
Insulation Height: | 0.365" (9.27mm) |
Contact Shape: | Square |
Contact Finish - Mating: | Gold or Gold, GXT™ |
Contact Finish Thickness - Mating: | 30.0µin (0.76µm) |
Contact Finish - Post: | Tin |
Contact Material: | Phosphor Bronze |
Insulation Material: | Thermoplastic |
Features: | Keying Slot |
Operating Temperature: | - |
Ingress Protection: | - |
Material Flammability Rating: | UL94 V-0 |
Insulation Color: | Black |
Current Rating (Amps): | - |
Voltage Rating: | - |
